MSS SP-80 Gate Valve, B62 C83600, 2 IN, 150 LB, Threaded

Home/Products/Gate Valves/MSS SP-80 Gate Valve, B62 C83600, 2 IN, 150 LB, Threaded
MSS SP-80 Gate Valve, B62 C83600, 2 IN, 150 LB, Threaded

Key Specifications / Features

Model No. : 1876017
As a leading bronze gate valve fabricator in China, we specialize in manufacturing valves that meet MSS SP-80 standards, utilizing high-grade ASTM B62 C83600 bronze. Our 2-inch (DN50) valves are rated for PN16 and Class 150 LB, with threaded connections and a durable union bonnet. Available with either a rising or non-rising stem, these valves provide reliable performance for various industrial applications, ensuring effective control in full open and close operations. Built for longevity, they are ideal for pipeline isolation in demanding environments.

Detail Information

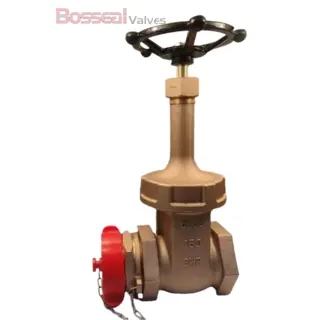

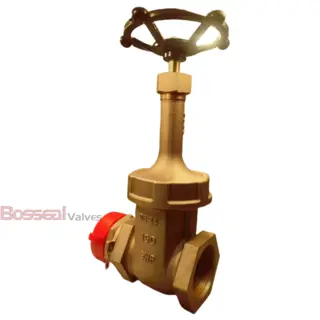

ASTM B62 C83600 Gate Valve, Union Bonnet, 2 Inch, Class 150 LB, MSS SP-80 Design.

Valve Description:
1876017 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Body Material: ASTM B62 C83600
Nominal Size: 2 Inches, DN50
Nominal Class: Class 150 LB, PN16
Operation: Handwheel
Test and Inspection: MSS SP-80
Structure: Threaded, Union Bonnet
Trim Material: ASTM B62 C83600
End Connection: Threaded ASME B1.20.1
Face to Face: Manufacturer Standard

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing following MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Pressure Range: Class 125/ 150/ 200/ 300 LB
Normal Diameter: 1/4 - 3 Inch (DN6 – DN80)
Operation: Handwheel
Working Temperature: -20°C to +150°C
End Connection: Threaded

Drawing for Gate Valve
