MSS SP-80 Threaded Gate Valve, ASTM B62 C83600, 300 LB, 1/2IN

Key Specifications / Features

Model No. : 1876033
As a trusted ASTM B62 C83600 bronze gate valve supplier in China, we provide valves that comply with MSS SP-80 design standards. This 1/2-inch (DN15) gate valve features a robust bronze body, offering excellent corrosion resistance and durability. Rated for Class 300 LB, it comes with a union bonnet for easy maintenance and secure assembly. The rising stem design facilitates smooth operation, while the standard bore ensures efficient fluid flow. Engineered for reliability and long-lasting performance, our valves are ideal for a wide range of industrial applications.

Detail Information

MSS SP-80 Bronze Gate Valves, ASTM B62 C83600, 1/2 Inch, Class 300 LB, Threaded Bonnet.

Valve Description:
1876033 Gate Valve
Bore Type: Standard Bore
Structure: Threaded, Union Bonnet
Design Standard: MSS SP-80
Size Range: 1/2 Inch, DN15
Class Rating: Class 300 LB, PN50
Body Material: ASTM B62 C83600
Test and Inspection: MSS SP-80
Trim Material: ASTM B62 C83600
Face to Face: Manufacturer Standard
End Connection: Threaded ASME B1.20.1
Operation: Handwheel

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing under MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4 Inch - 3 Inch (DN6 – DN80)
Pressure Range: Class 125 LBs, 150 LBs, 200 LBs, 300 LBs
Working Temperature: -20°C to +150°C
End Connection: Threaded
Operation: Handwheel

Drawing for Bronze Gate Valve

Name*
E-mail*
Rate*
Comments*

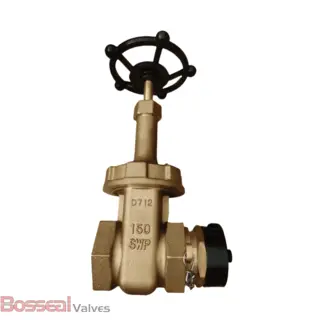

Next: MSS SP-80 Bronze Gate Valve, C83600, 3/4 IN, 300 LB, NPT

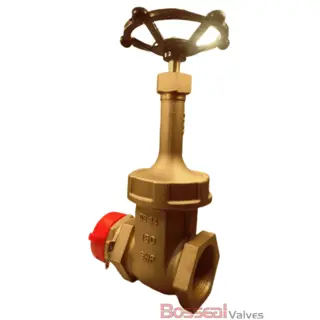

Previous: ASTM B62 C83600 Rising Stem Gate Valves, 300 LB, 3/8 IN
