Disassembly and Packing Replacement Guide of Butterfly Valve
Apr 19, 2024
In industrial production and pipeline systems, butterfly valves are common critical equipment for controlling fluid flow. To ensure the reliability and performance of butterfly valves, regular maintenance is essential. Among them, disassembly and replacement of packing are key steps in maintaining the normal operation of the valves. This guide will provide you with detailed instructions on disassembling and replacing packing for butterfly valves, along with practical tips to ensure smooth operations.

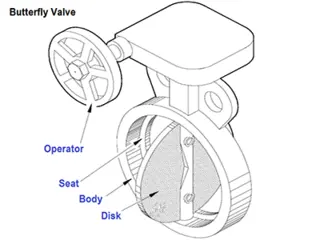

Disassembly Steps
Before carrying out any maintenance operation, it is crucial to take appropriate safety measures and ensure that the valve is in the closed position.
1. Carefully Remove the Handle Assembly: Start the disassembly process by carefully removing the handle assembly. This involves loosening the hex screws and lock washers.
2. Remove the Mounting Bracket: For valves equipped with control devices, you need to remove the mounting bracket. This typically requires loosening the bolts of the mounting bracket on the valve cover extension rod and lifting the actuator assembly off the valve stem.
3. Disassemble the Packing Gland: Next, you need to loosen the packing gland nut and lock washer. Pay attention to also carefully remove the packing gland anti-extrusion spring or split ring, as well as the packing gland and packing spacer.
4. Carefully Disassemble the Valve Stem Packing: If packing replacement is necessary, be sure to carefully disassemble the butterfly valve stem packing. During this process, ensure to avoid scratching the valve stem or packing gland bore.
Packing Replacement Steps
Replacing packing is a crucial step in the maintenance process. Here are the detailed steps for packing replacement.
- Prepare Cleaning Work: Before installing the new valve stem packing, thorough cleaning is necessary. Carefully inspect the valve body packing bore and stem, ensuring all corrosion or foreign objects are removed.
- Install New Packing One by One: When installing the new valve stem packing, ensure each step is carried out meticulously. Offset the packing ring joint by 80° and ensure each packing ring is compressed to the bottom before installing the next.
- Important Assembly Steps: When installing other components such as the ground ring and packing gland, make sure to follow the correct sequence and positioning to ensure the valve's sealing performance.
Conclusion and Considerations
After completing the packing replacement, reassemble the valve and perform the following checks and adjustments.
- Check Sealing Performance: After reassembly, open and close the butterfly valve multiple times to verify its sealing performance. Pay special attention to the presence of any thermal sticking phenomena.
- Attention to Torque Values: When re-tightening the packing gland nut, ensure to follow the specified torque values to avoid over-tightening or loosening.
Proper disassembly and packing replacement are crucial to maintaining the normal operation of butterfly valves. By following the detailed steps and considerations provided in this guide, you can effectively maintain butterfly valves and ensure their performance and safety. Regular maintenance not only extends the service life of butterfly valves but also reduces downtime and improves production efficiency.
