Duplex Stainless Steel Ball Valves: Features and Uses

In modern industrial production, valves, as key components of fluid control systems, directly affect the stable operation of the entire system. Duplex stainless steel ball valves, as high-performance valve products, have gained widespread application in numerous industrial fields due to their unique material characteristics and design advantages. This article will provide a detailed introduction to the features of duplex stainless steel ball valves, the performance advantages of duplex stainless steel, and the practical application value of these valves, helping you to better understand this high-efficiency and durable industrial valve choice.

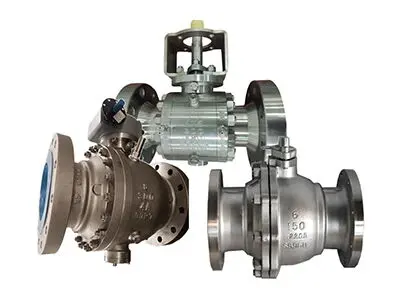

Duplex stainless steel ball valves are high-performance ball valves with a ball made of duplex stainless steel. These valves have the following significant features.

The passageway of a duplex stainless steel ball valve is designed to be smooth and flat, making it less likely to accumulate media. This feature allows the valve to effectively prevent the buildup and residue of media when conveying various fluid media. This is particularly important for industrial applications that require cleanliness, such as food processing and pharmaceutical industries. Additionally, duplex stainless steel ball valves can undergo pigging operations to further ensure internal cleanliness.

The operation of a duplex stainless steel ball valve is very quick and convenient. By simply rotating the valve body 90°, the ball valve can complete a full open or close action. This rapid opening and closing design makes the valve perform exceptionally well in applications that require frequent operations, effectively improving work efficiency. For example, in the pipeline systems of the petrochemical industry, duplex stainless steel ball valves can quickly respond to operational commands, ensuring the smooth conveyance of fluids and the normal operation of the system.

Among all types of valves, duplex stainless steel ball valves have one of the lowest fluid resistances. Even in the case of reduced-bore ball valves, the fluid resistance is still quite minimal. This feature allows the valve to reduce energy loss during fluid conveyance, enhancing the overall efficiency of the system. In industrial applications with high requirements for fluid conveyance efficiency, such as oil and gas transportation and chemical liquid conveyance, the low fluid resistance of duplex stainless steel ball valves can significantly reduce transportation costs.

The opening and closing operation of a duplex stainless steel ball valve requires only a 90° movement, making it easy to achieve automated and remote control. The ball valve can be equipped with electric, pneumatic, or hydraulic actuators to meet the automation needs of different industrial settings. For instance, in the automated control systems of large chemical plants, duplex stainless steel ball valves can be remotely controlled via electric actuators. Operators can precisely control the valves through a computer system in the control room, greatly enhancing the convenience and safety of operations.

During the opening and closing process of a duplex stainless steel ball valve, the stem only rotates 90°, which means the packing seal of the stem is less likely to be damaged. Moreover, the back-seating sealing force of the stem increases with the increase of media pressure, further enhancing the sealing performance. This feature allows the valve to maintain good sealing performance even under high-pressure and highly corrosive conditions, ensuring the safe operation of the system.

The seat (sealing ring) of a duplex stainless steel ball valve is usually made of elastic materials such as polytetrafluoroethylene (PTFE), which ensures reliable sealing. Additionally, the sealing force of the ball valve increases with the increase of media pressure, allowing the valve to maintain good sealing performance under high pressure. This superior sealing performance makes the valve effective in preventing leaks when conveying flammable, explosive, toxic, and other hazardous media, ensuring the safety of operators and the environment.

The superior performance of duplex stainless steel ball valves is mainly due to the duplex stainless steel material used. Duplex stainless steel (DSS) is a special type of stainless steel, with ferrite and austenite each accounting for about 50%, and the minimum content of the lesser phase should reach at least 30%. Duplex stainless steel has the following significant performance advantages:

The yield strength of duplex stainless steel is more than twice that of ordinary austenitic stainless steel, and it has sufficient ductility for molding. This allows duplex stainless steel to reduce the wall thickness by 30% to 50% when manufacturing storage tanks or pressure vessels, significantly reducing material costs. For example, in the storage tank manufacturing of the oil and gas industry, using duplex stainless steel not only reduces material costs but also enhances the strength and safety of the tanks.

Duplex stainless steel has excellent corrosion resistance, especially in environments containing chloride ions. Even the duplex stainless steel with the lowest alloy content has a stronger resistance to stress corrosion cracking than ordinary austenitic stainless steel. In many media, the corrosion resistance of 2205 duplex stainless steel is better than that of ordinary 316L austenitic stainless steel, while super duplex stainless steel has very high corrosion resistance. For example, in strongly corrosive media such as acetic acid and formic acid, duplex stainless steel can even replace high-alloy austenitic stainless steel and some corrosion-resistant alloys.

Duplex stainless steel has good localized corrosion resistance. Compared with austenitic stainless steel with similar alloy content, it has better resistance to wear corrosion and corrosion fatigue. This makes duplex stainless steel perform well in harsh industrial environments and effectively extends the service life of equipment. For example, in marine engineering and chemical equipment, the localized corrosion resistance of duplex stainless steel can effectively resist the erosion of corrosive media such as seawater and acids and alkalis.

The coefficient of thermal expansion of duplex stainless steel is lower than that of austenitic stainless steel and is close to that of carbon steel. This feature makes duplex stainless steel more suitable for connection with carbon steel, which is of great engineering significance. For example, in the production of composite plates or linings, the low coefficient of thermal expansion of duplex stainless steel can effectively reduce stress concentration caused by inconsistent thermal expansion, enhancing the stability and safety of equipment.

Duplex stainless steel has a higher energy absorption capacity than austenitic stainless steel under dynamic or static load conditions. This is a significant advantage for structural components to cope with sudden accidents such as collisions and explosions. For example, in oil and gas pipeline systems, the high energy absorption capacity of duplex stainless steel can effectively resist external impacts and ensure the safe operation of the system.

Due to their superior performance, duplex stainless steel ball valves have been widely applied in many industrial fields. Here are some typical application scenarios:

In the petrochemical industry, duplex stainless steel ball valves are widely used in the conveyance of oil and gas, chemical liquids, and other applications. Their low fluid resistance, quick opening and closing, and good sealing performance can effectively improve the efficiency and safety of system operations. For example, in oil and gas pipeline systems, duplex stainless steel ball valves can quickly respond to operational commands, ensuring the smooth conveyance of fluids and preventing leaks to safeguard the safety of operators and the environment.

Marine engineering environments are harsh, with equipment needing to withstand the corrosion of seawater and the attachment of marine organisms. The excellent corrosion resistance and good sealing performance of duplex stainless steel ball valves make them an ideal choice for marine engineering. For example, in the pipeline systems of offshore oil platforms, duplex stainless steel ball valves can effectively resist the erosion of seawater and ensure the normal operation of the system.

In the food processing and pharmaceutical industries, hygiene and cleanliness are of utmost importance. The smooth and cleanable passageway of duplex stainless steel ball valves, along with their ability to undergo pigging operations, can effectively prevent the residue and contamination of media. Additionally, their quick opening and closing and good sealing performance meet the strict requirements of these industries for production efficiency and hygiene standards.

In the power industry, duplex stainless steel ball valves are widely used in the cooling water systems and steam systems of power plants. Their high strength, good sealing performance, and low fluid resistance can effectively improve the efficiency and safety of system operations. For example, in the cooling water systems of power plants, duplex stainless steel ball valves can ensure the smooth conveyance of cooling water and prevent leaks to safeguard the normal operation of power generation equipment.

Duplex stainless steel ball valves adopt an upper-mounted structural design, which has significant advantages in large-diameter and high-pressure conditions. The upper-mounted structure reduces the number of connecting bolts in the valve body, enhancing the reliability of the valve. At the same time, this design can effectively overcome the impact of system self-weight on the normal operation of the valve, ensuring stable operation under various working conditions. For example, in the high-pressure pipeline systems of large chemical plants, the upper-mounted structural design of duplex stainless steel ball valves can effectively prevent valve deformation and leakage caused by system self-weight, ensuring the safe operation of the system.

To ensure the long-term stable operation of duplex stainless steel ball valves, regular maintenance and care are essential. Here are some common maintenance and care measures:

Regular Inspection of Sealing Performance: Regularly inspect the sealing performance of duplex stainless steel ball valves to ensure that there are no leaks during operation. If a decrease in sealing performance is detected, promptly replace the sealing ring or other related components.

Cleaning and Lubrication: Regularly clean the surface and interior of duplex stainless steel ball valves to remove any possible impurities and dirt. At the same time, lubricate the moving parts of the valve to reduce wear and extend the service life of the valve.

Check Operational Flexibility: Regularly check the operational flexibility of duplex stainless steel ball valves to ensure that they can open and close normally. If operational difficulties are encountered, promptly inspect the stem, seat, and other components to troubleshoot and resolve any issues.

Avoid Over-Operation: Avoid over-operating duplex stainless steel ball valves, such as frequent opening and closing or forced operation under high pressure. This can lead to a decrease in sealing performance or damage to internal components.

As a high-performance industrial valve, the duplex stainless steel ball valve, with its unique duplex stainless steel material and advanced structural design, has been widely applied in multiple fields, including petrochemicals, marine engineering, food processing, pharmaceuticals, and power generation. Its smooth and cleanable passageway, quick and convenient operation, low fluid resistance, ease of automation, excellent stem sealing performance, and superior sealing performance make it perform well under various harsh working conditions. Moreover, the high strength, good ductility, excellent corrosion resistance, good localized corrosion resistance, low coefficient of thermal expansion, and high energy absorption capacity of duplex stainless steel further enhance the overall performance of the valve. With proper maintenance and care, duplex stainless steel ball valves can operate stably over the long term, providing reliable support for industrial production.
