Guide to Bellows Sealing for Industrial Valves

In the industrial field, valves are key components for controlling fluid flow, and their sealing performance is of great importance. As one of the outstanding technologies in valve sealing, bellows seals are protecting industrial safety and efficiency with their excellent performance and wide applications. Today, let us take a closer look at the mystery of valve bellows seals.

The bellows, a seemingly ordinary mechanical element, plays an indispensable role in the world of valves. Whether it is a globe valve, gate valve, safety valve, steam trap, or pressure reducing valve, bellows can be seen everywhere. It is like the heart of a valve, providing strong support for its proper operation.

In gate valves, globe valves, and safety valves, the main task of the bellows is to enhance sealing performance. Imagine that these valves are often used in situations where sealing is extremely important, such as handling toxic or contaminated fluids. Without the bellows, even the slightest leakage may lead to serious safety accidents. With their highly efficient sealing capability, bellows become essential sealing components, ensuring the reliable operation of valves in harsh environments with high pressure and temperature.

In steam traps and pressure reducing valves, the bellows take on another role as sensitive elements. They act like the nerves of the valve, able to quickly sense changes in fluid pressure and temperature and respond rapidly, improving the sensitivity of valve action. This allows steam traps to more accurately control the discharge of steam and condensate, and pressure reducing valves to more stably regulate fluid pressure, expanding the application range of valves.

Bellows are not all the same. They come in various types, each with unique features and suitable applications.

Bellows can be single-layer, double-layer, or multi-layer. A single-layer bellow is like a thin sheet, simple in structure and suitable for applications where sealing requirements are not very high. Double-layer and multi-layer bellows, like stacked sheets, have stronger sealing performance and can withstand higher pressure, making them ideal for handling high-pressure fluids. For example, in high-pressure pipelines in chemical plants, multi-layer bellows play a crucial role, effectively preventing the leakage of hazardous chemicals.

Bellows can also be integral or welded. The integral type is made from a complete metal tube through special processing. Its advantage is its good integrity and absence of welding joints, making it the best choice for applications requiring extremely high sealing performance, such as valves in the nuclear industry. The welded type is made by welding multiple corrugations together. It has the advantages of a simpler manufacturing process and lower cost, suitable for cost-sensitive applications such as small civil valves.

The shapes of bellows are also diverse, including annular bellows and helical bellows. The annular type resembles a series of connected rings, with a compact structure capable of withstanding high pressure, often used in limited-space applications such as small instrument valves. The helical type, resembling a spiral spring, has better elasticity and can accommodate larger displacements, suitable for valves that require frequent opening and closing, such as automatic control valves.

Bellows can also be single-unit or series-connected. A single-unit bellow is like an independent unit, simple in structure and suitable for simple sealing needs. Series-connected bellows are composed of multiple bellows connected together, providing stronger sealing performance and higher reliability. They are often used in situations requiring extremely high sealing performance, such as pipelines transporting hazardous chemicals.

The choice of bellows material is equally important. Different materials have different properties and must be selected according to actual application requirements.

Copper alloy bellows have good electrical and thermal conductivity, making them ideal for applications requiring good electrical performance, such as electrical valves. Copper alloy also has certain corrosion resistance, capable of withstanding common chemical corrosion.

Stainless steel bellows are among the most widely used materials. They have excellent corrosion resistance and high strength, adapting to various complex environments. For example, in valves used in the food processing industry, stainless steel bellows can effectively prevent food contamination and ensure food safety. The most popular stainless steel material is AISI 316Ti, which contains titanium and maintains stable performance in high-temperature environments.

Plastic bellows are lightweight and corrosion-resistant, suitable for situations requiring light weight or handling mildly corrosive fluids. For example, in small plastic pipeline valves, plastic bellows not only provide good sealing performance but also reduce the valve's overall weight, making installation and maintenance easier.

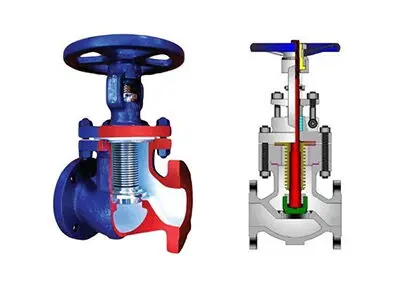

The principle of bellows sealing is not complex, yet it is very ingenious. It uses the elastic deformation of the bellows to achieve sealing. When the valve opens or closes, the bellows expand or contract like a spring. This expansion and contraction allow the bellows to fit tightly against the valve stem and valve body, forming a sealing surface. The metallic material of the bellows ensures the strength and reliability of this seal. Compared with traditional sealing methods, bellows sealing has many remarkable advantages.

The core advantage of bellows sealing is "zero leakage." The bellows create an absolute metal barrier between the valve stem and the process medium, completely sealing the medium inside the valve body and eliminating the leakage path along the valve stem. This is especially important in handling hazardous or highly polluting fluids, effectively preventing leaks and ensuring personnel and environmental safety.

High-quality bellows, after strict testing, can easily reach more than 100,000 open-close cycles. This is much higher than traditional soft packing seals, which require frequent maintenance and replacement. The long service life of bellows seals not only reduces maintenance costs but also improves equipment operation efficiency and reduces downtime.

Bellows seals can handle extreme conditions such as cryogenic, ultra-high temperature, high vacuum, and strong corrosion. These environments are often beyond the capability of traditional packing seals. However, thanks to their metallic structure and special design, bellows seals can easily adapt. For instance, in high-temperature and high-pressure reactors in chemical plants, bellows seals ensure the reliable operation of valves, guaranteeing the smooth progress of the production process.

The structure of bellows seals contains no sliding parts or dynamic O-rings, so no friction or wear occurs. This reduces maintenance needs and enhances sealing reliability. Traditional sealing methods often suffer from wear caused by friction, reducing sealing performance over time, while bellows seals completely avoid this problem, ensuring stable sealing performance.

The application range of bellows seals is very wide, covering almost every area of industrial production.

In the chemical industry, bellows seals are widely used in reactors and pipeline valves. Because chemical processes often involve high temperature, high pressure, and strong corrosive substances, traditional sealing methods can easily fail. Bellows seals effectively prevent chemical leakage, ensure production safety, and improve efficiency while reducing raw material loss caused by leaks.

Vacuum systems have extremely high sealing requirements, as even minor leaks can cause vacuum degradation and affect normal operation. Bellows seals play a key role here, providing tight, leak-free sealing that ensures system stability. For example, in vacuum experimental equipment in research laboratories, bellows seals effectively maintain vacuum environments and provide reliable conditions for experiments.

The semiconductor industry demands extremely high cleanliness, where even tiny contamination can cause chip production failure. The application of bellows seals in semiconductor tools prevents fluid leakage and maintains system cleanliness. Meanwhile, the friction-free structure of bellows seals reduces particle generation, further improving yield and manufacturing quality.

In steam systems, bellows seals are widely used in steam traps and pressure reducing valves. Steam traps require precise control of steam and condensate discharge, and the bellows, as sensitive elements, detect pressure and temperature changes, enhancing response sensitivity. Pressure reducing valves must regulate steam pressure stably, and bellows seals ensure reliable operation under high steam pressure, maintaining system stability.

As one of the leading technologies in valve sealing, bellows seals, with their outstanding performance and wide applications, provide strong assurance for industrial safety and efficiency. From chemical processing to semiconductor manufacturing, from vacuum systems to steam systems, bellows seals play an irreplaceable role. When selecting bellows seals, it is necessary to consider actual application requirements and comprehensively evaluate factors such as type, material, and manufacturing process to ensure the most suitable sealing solution. At the same time, continuous innovation and development of bellows sealing technology are expected to bring more breakthroughs and surprises to the industrial field in the future.
