Guide to Cast Iron Valve Surface Coating Processes

In modern building construction and drainage systems, cast iron valves are indispensable key components. They silently guard the smooth flow of water and ensure the normal operation of the system. However, the corrosion of cast iron acts as an invisible enemy, troubling the engineering field for a long time. This corrosion not only affects the service life of valves but may also cause secondary pollution of water, posing potential risks to human life and the environment. Therefore, how to effectively solve the corrosion problem of cast iron valves has become an urgent issue. This article will deeply explore the mechanism of cast iron valve corrosion and focus on analyzing how to effectively extend their service life through reasonable coating processes, while meeting environmental and water safety requirements.

The corrosion of cast iron is mainly divided into chemical corrosion and electrochemical corrosion. The corrosion can be uniform, localized, stress-induced, or intergranular. In engineering applications, uniform corrosion is relatively acceptable, because localized corrosion, stress corrosion, and intergranular corrosion often lead to severe damage. The corrosion of cast iron is influenced by multiple factors, including its chemical composition, metallographic structure, surface characteristics, as well as the composition, reactivity, and temperature of the corrosive medium.

In atmospheric environments, the corrosion rate of cast iron is relatively slow. Over time, a protective film forms on the surface of the casting, turning the alloy from an active state to a passive state, thus significantly reducing the corrosion rate. However, in alloy cast iron with obvious grain boundaries, due to the precipitation of special carbides and other compounds along the grain boundaries, the alloy elements in the solid solution decrease, and microcrevice corrosion easily occurs at the grain boundaries, leading to pitting or reduced strength of the cast iron.

Building construction and drainage systems generally operate at lower pressures. To control costs, cast iron is the main material for valves and pipe fittings. However, construction standards require that valves and pipes have a service life of generally no less than 30 years, and they must not cause secondary contamination of the medium. Cast iron itself is not corrosion-resistant and cannot meet these requirements, so its surface requires proper coating treatment to separate the medium from the valve.

Cast iron valve materials include gray cast iron, malleable cast iron, and ductile iron. Valve damage and replacement are mainly due to corrosion of the main body. The interior, in contact with the medium, suffers severe corrosion, leading to reduced valve bore, increased flow resistance, and impaired medium transport. In addition, valves are often installed at ground level or underground. The surface is exposed to air, and with humid air, surface corrosion easily occurs. Therefore, protecting the main material of the valve is key to extending its service life. At the same time, since cast iron comes into direct contact with water, corrosion can cause secondary pollution of water, which must be controlled. Therefore, coating requirements prioritize functional protection, with aesthetics being secondary.

Valve surface treatment methods mainly include alkyd resin coating, galvanization, and powder coating. Alkyd resin coatings have a short protection period and cannot be used long-term under working conditions. Galvanization is mainly applied to pipelines and includes hot-dip galvanization and electro-galvanization, which are complex processes. Pretreatment involves pickling and phosphating, leaving acid or alkali residues on the workpiece surface, creating corrosion risks and making the galvanized layer prone to peeling. Galvanization's corrosion resistance lasts 3–5 years.

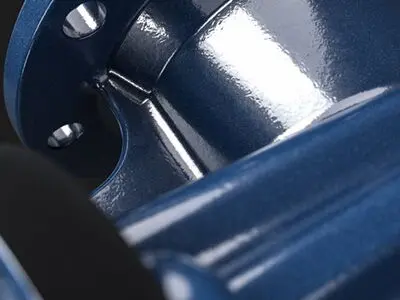

In contrast, powder coating features thick layers, corrosion resistance, and abrasion resistance, meeting the valve requirements under water system conditions. Powder coatings are solvent-free, reducing environmental pollution and the risk of solvent toxicity, non-flammable, safe to store and transport, and cost-effective. Powder coatings are recyclable, with a utilization rate of approximately 95%. Coating processes are easily automated, and a single application can achieve a thickness of 40–500 μm without primer, improving work efficiency. Edge coverage is excellent, and the mechanical, insulation, and corrosion-resistant properties of the coating are superior. However, changing powder coating colors is complex. Storage is affected by pressure, temperature, and humidity, which can cause clumping. Manufacturing equipment and coating processes for powder coating are relatively sophisticated.

There are many types of powder coatings, commonly including Nylon 11, Nylon 12, epoxy, and epoxy-polyester. Considering performance, cost, and process complexity, epoxy powder is suitable for valve coatings. For example, the electric butterfly valves most used in drainage pipelines typically use this coating. If cost is not a concern, the nylon series is the best solution, offering high overall performance. There are successful cases abroad using nylon powder for valve coatings.

Epoxy powder coatings have strong adhesion, smooth surfaces, impact resistance, corrosion resistance, abrasion resistance, and aging resistance, meeting both valve operational requirements and water system requirements for water supply and distribution equipment. When selecting powder and equipment, full consideration must be given to the compatibility of materials, processes, and equipment.

After understanding the corrosion mechanism of cast iron valves and the selection of coating materials, we will discuss the specific coating process. This process is key to ensuring that the coating effectively protects cast iron valves and extends their service life. Every step must strictly follow standard operations to ensure the quality and performance of the coating.

Cast iron components requiring coating include the valve body, bonnet, gland, handwheel, and gate. The coating surface must be dry, clean, and possess a certain roughness. Due to the porous structure of cast iron, components are not dense. Acid treatment can lead to internal acid penetration, causing hydrogen storage and making hydrogen embrittlement likely. Therefore, before coating, acid pickling and phosphating should be avoided. Instead, shot blasting or sandblasting is used to achieve Sa2.5 level. The component must enter preheating within six hours after treatment, avoiding rain to prevent rust. During handling, prevent oil contamination and wear cotton gloves. When designing the spray line, if conditions permit, inline shot blasting can be considered to avoid repeated manual contact and prevent secondary contamination. Consumables for shot blasting can be a 1:1 mix of high-quality stainless steel shot and stainless steel cut wire, replenished proportionally based on consumption.

Preheating must ensure the casting's actual temperature is 190–210°C. Air temperature cannot be used as a judgment for component temperature and is only a reference. Due to the heavy and porous structure of valve castings, thermal inertia exists, requiring sufficient preheating time to ensure proper component temperature and to expel gases, preventing bubble defects after powder coating. Specific times are set according to component size.

Powder coating mainly uses electrostatic spraying and fluidized bed methods. Electrostatic spraying can be done on production lines or single units. The process is the same; the main difference is workpiece transfer. Production lines use automatic conveyor chains, while units use manual hoisting. Coating thickness should be controlled at 250–300 μm. Thickness below 150 μm reduces protection; above 500 μm decreases adhesion and impact resistance and increases powder consumption.

Fluidized bed coating suspends powder in the bed, which solidifies on contact with a heated workpiece, forming a layer no less than 300 μm. This method ensures uniform thickness, including internal areas, with high quality and efficiency. Electrostatic spraying is simpler and requires smaller initial investment; fluidized bed provides higher coating quality but higher initial investment. Spraying should be completed as quickly as possible, ideally during the powder's gel time. Threads, flat surfaces, and holes not requiring coating can be masked with silicone plugs or high-temperature tape and removed after spraying.

Curing occurs at 180°C for 10–15 minutes. This step is key to final coating formation and significantly affects performance. Low temperature or short time leads to incomplete curing; high temperature or long time causes discoloration. The transfer time from spraying to curing should ideally be within two minutes to avoid affecting curing. After curing, components should cool to room temperature naturally.

For daily production of cast iron valves such as elastic seat gate valves, routine inspections include appearance, adhesion, thickness, and crosslinking. Performance tests should be conducted when selecting coating materials or changing process parameters. Normal production does not require testing. According to EN14901-2006, performance tests include impact resistance, indentation resistance, porosity, thermal aging, corrosion resistance, abrasion resistance, and safety.

Repair materials and processes must ensure protection under operational conditions and compatibility with existing coatings, commonly using manual heat repair.

Corrosion of cast iron valves is a complex engineering problem. However, through reasonable coating processes, service life can be effectively extended while meeting environmental and water quality requirements. In practical application, it is necessary to comprehensively consider the corrosion mechanism of cast iron, coating material selection, coating process optimization, and coating inspection and repair. Only by doing so can cast iron valves operate stably in building and drainage systems for a long time, providing reliable protection for people's lives and industrial operations.
