Selection of Valves for Media Containing Solid Particles

In modern industrial production, valves are indispensable key components in various complex process systems. They play a vital role in controlling fluid flow, regulating pressure, and adjusting flow rates. However, in many industrial applications, the process media often contain solid particles, which poses significant challenges to valve selection and application. This article provides an in-depth discussion of valve selection principles under operating conditions involving solid-particle-laden media, the application characteristics of different valve types, and practical case studies, aiming to offer a scientific and reasonable reference for valve selection in industrial production.

In many industrial installations, such as black water piping systems in coal gasification units, catalyst circulation systems in fuel oil desulfurization units (e.g., S-zorb desulfurization units), catalyst circulation systems in fluidized catalytic cracking units, and finished product piping systems in polysilicon plants, the presence of solid particles in the process medium is a common phenomenon. The content, size, and hardness of these solid particles vary depending on the specific production unit, but their impact on valves exhibits similar characteristics.

First, when solid particles flow with the medium, they cause erosive wear on the valve flow passages and closure components. When the valve is in the open or closed position, changes in flow velocity cause frequent collisions and friction between solid particles and internal valve components, resulting in gradual wear of the flow paths and closure surfaces. This wear not only reduces the sealing performance of the valve but may also affect its normal opening and closing functions.

Second, solid particles accelerate wear on valve sealing surfaces. The sealing surface is the critical area for achieving tight shutoff. Once it is worn by solid particles, leakage may occur, leading to safety hazards and disruptions to normal production. Therefore, selecting suitable valves for operating conditions involving solid-particle-laden media is of paramount importance.

After understanding the characteristics of solid-particle-laden media and their effects on valves, the following section focuses on valve selection principles under such operating conditions. These principles are key guidelines to ensure stable valve operation under complex conditions, extend service life, and safeguard production safety. Only by following scientific and reasonable selection principles can the most suitable valve be chosen from among many types to provide reliable assurance for industrial production.

During valve selection, priority should be given to whether the valve can prevent solid particle deposition. For example, due to their structural characteristics, gate valves tend to allow solid particles to accumulate beneath the gate, preventing proper closure; therefore, they are not suitable for media prone to solid particle deposition. In contrast, valves such as ball valves and plug valves have relatively simple internal structures with smooth flow paths, making it difficult for solid particles to accumulate inside the valve and effectively preventing incomplete closure caused by deposition.

When severe erosive wear is anticipated, valves with good wear compensation capability should be selected. Metal-seated butterfly valves are generally unsuitable in such cases, as their sealing surfaces have relatively weak wear compensation ability after being eroded by solid particles. Valves with special structural designs, such as ball valves equipped with wear compensation mechanisms, can automatically compensate for sealing surface wear to a certain extent, thereby extending service life and maintaining sealing performance.

Valves with non-metallic seals are prone to sealing failure under operating conditions involving solid particles and should therefore be avoided. Metal-seated valves should be selected whenever possible, and the sealing surfaces of the disc and seat should be surface-hardened using hard alloy overlay welding. Based on the size and hardness of solid particles in the medium, appropriate hard alloy materials should be selected, and in some cases, sealing surface hardness requirements should be specified. For example, in black water pipelines of methanol plants, tungsten carbide hard alloy with a hardness of up to 65 HRC is used for the ball and seat sealing surfaces, significantly improving wear resistance and reducing damage to the sealing surfaces.

While meeting process requirements, valve types with favorable flow characteristics, such as ball valves and plug valves, should be selected whenever possible. These valves have low flow resistance and smooth flow paths, reducing erosive wear inside the valve. Economic considerations should also be taken into account. Unless special requirements exist, full-bore valves should be preferred. When fully open, full-bore valves allow unobstructed flow, reducing media retention and erosion, lowering pressure drop, and saving energy. When selecting globe valves, Y-type globe valves should be preferred due to their smoother flow paths and reduced erosive wear.

During the brief periods when a valve is about to open or close, increased flow velocity intensifies erosive wear. Therefore, modifying flow passage design to reduce erosion is an important consideration. Some valve manufacturers have implemented effective improvements by optimizing internal flow paths to ensure smoother flow, reducing turbulence and impact, and thereby minimizing erosive wear. Design engineers should pay attention to such improvements when selecting valve manufacturers to ensure better adaptation to solid-particle-laden operating conditions.

With the selection principles clarified, this section examines the specific applications of different valve types under complex conditions involving solid particles. Understanding the characteristics and suitable applications of each valve type helps integrate theoretical selection principles with practical use, enabling optimal and efficient valve solutions for various industrial scenarios.

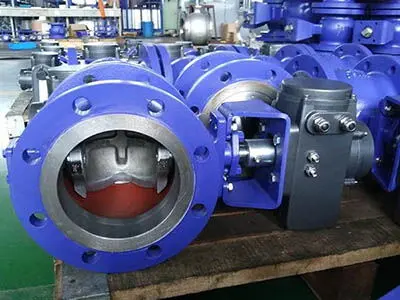

Ball valves are among the most widely used valve types under solid-particle-laden conditions. They feature simple structures and good sealing performance, effectively reducing friction and wear between solid particles and sealing surfaces. The spherical cavity of a ball valve forms an annular groove between the ball surface and the sealing surface, where solid particles may accumulate. However, optimized designs such as V-port ball valves can guide solid particles downstream, reducing wear and blockage risks. In V-port ball valves, the V-shaped cavity and groove allow solid particles to be smoothly discharged during flow, minimizing wear and blockage. For example, in S-zorb desulfurization units, ball valves with excellent flow characteristics and boronized sealing surfaces with hardness up to 80 HRC have proven to be highly effective in practice.

Plug valves have structures similar to ball valves and also exhibit good flow characteristics and wear resistance. Their sealing surfaces are overlaid with hard alloys, providing effective resistance to erosive wear. During operation, the relative movement between the plug and valve body is minimal, reducing wear on sealing surfaces. The simple flow passage design ensures smooth flow and minimizes turbulence and impact, making plug valves suitable for applications requiring high wear resistance.

Globe valves are less commonly used under solid-particle-laden conditions because their structural characteristics tend to generate turbulence and impact, increasing erosive wear. However, in specific situations requiring flow regulation or high sealing performance, globe valves can still be effective. Y-type globe valves should be preferred due to their smoother flow paths and reduced erosion. Their sealing surfaces should also be hard alloy overlaid to enhance wear resistance.

The application of butterfly valves under solid-particle-laden conditions is limited due to the susceptibility of their sealing surfaces to erosive wear. Metal-seated butterfly valves are unsuitable for severe erosion, while non-metallic seated butterfly valves are prone to sealing failure. Although specially designed butterfly valves with wear-resistant coatings or special sealing structures can improve performance to some extent, their overall application scope remains limited.

In addition to common valve types, several specialized valves are used under solid-particle-laden conditions, including electric and pneumatic V-port ball valves, eccentric hemispherical valves, ceramic knife gate valves, and pinch valves. Each has unique characteristics suitable for different particle hardness requirements. V-port ball valves are more suitable than standard ball valves for liquids containing high solid content. Ceramic knife gate valves offer excellent wear and corrosion resistance for highly abrasive applications. Pinch valves, which control flow by clamping or releasing flexible pipes, feature simple structures, easy operation, and good sealing performance, offering promising applications in solid-particle-laden services.

To further illustrate the effectiveness of these selection principles and application recommendations, the following case studies demonstrate their implementation and results in real industrial environments.

In black water pipelines of methanol plants, media contain large amounts of solid particles, requiring high wear resistance and sealing performance. Practical experience shows that selecting ball valves with excellent flow characteristics and tungsten carbide sealing surfaces with hardness up to 65 HRC effectively resists erosive wear, delivers good sealing performance, extends service life, reduces maintenance frequency, and improves system efficiency.

Catalyst circulation systems in S-zorb desulfurization units face similar wear challenges. Ball valves with optimized flow paths and boronized sealing surfaces (up to 80 HRC) effectively prevent sealing surface wear, ensuring reliable operation. Close coordination with valve manufacturers ensures reasonable flow passage design and durable hard alloy overlays, enhancing overall system reliability.

In certain wastewater treatment processes, slurry valves are required to handle water containing large amounts of solid particles. Slurry valves offer excellent wear and corrosion resistance, smooth flow, and minimal blockage. In practical applications, they ensure stable system operation, reduce downtime caused by valve failures, and improve treatment efficiency.

Operating conditions involving media with solid particles are common in industrial production and impose stringent requirements on valve selection and application. Key selection principles include preventing particle deposition, ensuring good wear compensation, selecting wear-resistant sealing materials, providing favorable flow characteristics, and maintaining economic feasibility. Different valve types have their respective advantages and limitations, with ball valves and plug valves being widely used due to their excellent wear resistance and flow performance. Through effective communication and evaluation with valve manufacturers, selecting appropriate valve types and materials can significantly extend valve service life and enhance system efficiency. For control valve selection, appropriate valve types and structural designs should be chosen based on specific operating requirements to meet industrial automation control needs. Under complex solid-particle-laden conditions, proper valve selection and scientific application are critical to ensuring smooth and safe industrial production.
