Key Specifications / Features
Model No. : 16BSP9JA105N

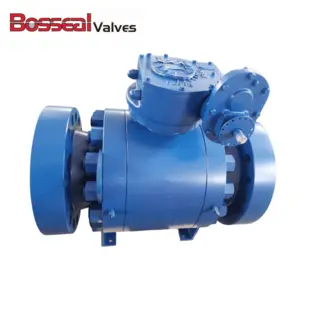

Explore top-quality RTJ Flanged Trunnion Mounted Ball Valve from a trusted supplier. This API 6D compliant valve is 16 inches in size, DN400, with a pressure rating of 900 LB or PN150. Constructed with ASTM A105N material and featuring ASTM A182 F51 Trim, RTJ End, Full Bore design, DIB-1 certification, and equipped with Gear Operation for seamless control.
Categories
Trunnion Mounted Ball Valve
Tags:
API 6D Ball Valve
, ASTM A105N Ball Valve
, 16 Inch Ball Valve
.
Trunnion Mounted Ball Valve, API 6D, 16 inch, 900 LB, RTJ, A105N Body, F51 Trim, PEEK Seat, DPE Seats (DIB-1), Gear Operation
Valve Description:
1811063 Trunnion Mounted Ball Valve 16BSP9JA105N
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DIB-1
Nominal size: 16 Inch
Nominal class: 900 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear Operation
Body Material: ASTM A105N
Trim Material: ASTM A182 F51, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DIB-1, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
