Spring-loaded Check Valves, API 594, ASTM B148 C95800, 14 IN

Name: Spring-loaded Check Valves, API 594, ASTM B148 C95800, 14 IN
SKU: cv-187303009
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : CV-187303009

We are a reliable manufacturer of spring-loaded check valves, offering high-performance solutions built to API 594 design standards. This 14-inch (DN350) valve features a robust aluminum bronze body and disc made from ASTM B148 C95800, providing excellent corrosion resistance in harsh environments such as marine and industrial systems. Designed for Class 150 LB / PN20 pressure ratings, it ensures efficient backflow prevention with a compact dual plate design and a spring-loaded mechanism for quick, secure closure. Available in wafer, lug, or flanged end connections to meet various installation needs.

Request a quote

Tags:

Spring Loaded Check Valve

API 594 Check Valve

ASTM B148 C95800 Check Valve

Detail Information

Valve Description:
187303009 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 14 Inch, DN350
Nominal Class: 150 LB, PN20
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2-48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)

Next: Aluminum Bronze C95800 Check Valve, Dual Plate, 16 IN, CL150

Previous: API 594 Al-bronze Check Valve, C95800, 12IN, 150 LB, Flanged

Similar Products

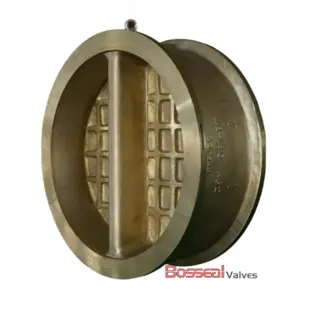

ASTM B148 C95800 Check Valves, Aluminum Bronze, 8 IN, 150 LB

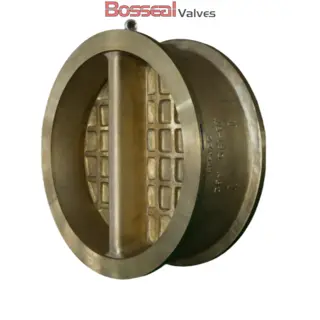

Aluminum Bronze Dual Plate Check Valves, API 594, 2-1/2 Inch
