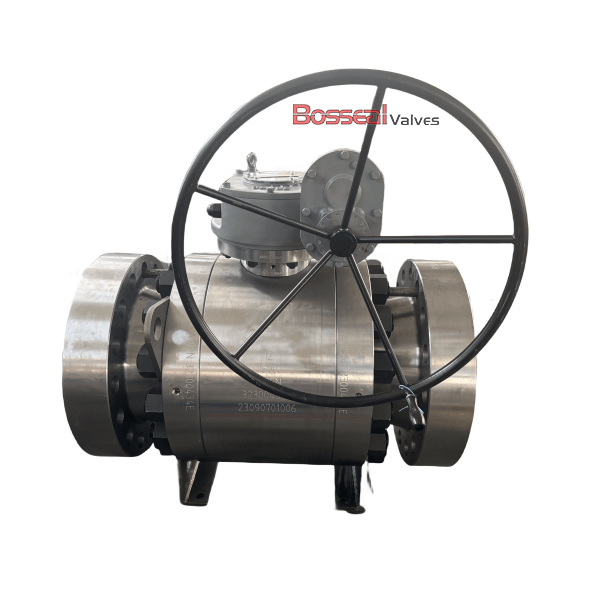

Stainless Steel Ball Valves, API 6A, 17-4PH Trim, 11 IN, BB

Key Specifications / Features

Model No. : BV-181104017

As a leading stainless steel ball valve factory in China, we offer 11-inch valves engineered to API 6A specifications and rated for 2000 PSI. These valves feature durable F60, F65, or AISI 4130 bodies, combined with high-performance 17-4PH stainless steel trim for excellent strength and corrosion resistance. Designed with a bolted bonnet for secure assembly, they are available with either soft or metal seats to suit various service conditions. Ideal for demanding oil and gas applications, our valves ensure reliable sealing, long service life, and precise flow control in high-pressure environments.


Detail Information

Valve Description:
181104017 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing

Structure of Ball Valve



Parts Materials of Ball Valve



Drawing of Ball Valve



Working Pressure of Ball Valve
