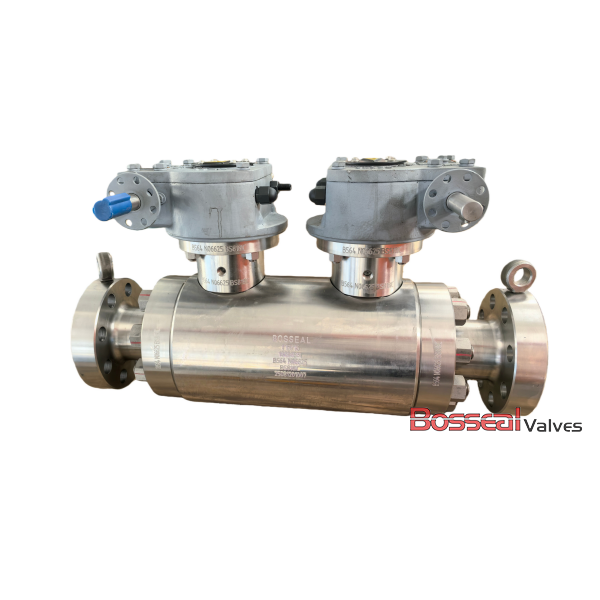

Stainless Steel DBB Ball Valve, F316, 20 Inch, 1500 LB, RTJ

Key Specifications / Features

Model No. : 181302096

Designed in accordance with API 6D and BS 5351 standards, this trunnion mounted ball valve features a premium ASTM A182 F316 stainless steel body for superior corrosion resistance and durability in harsh service environments. With a large 20-inch (DN500) size and Class 1500 LB pressure rating, it is engineered for high-pressure, heavy-duty applications. The RTJ flanged ends ensure reliable, leak-tight sealing, while the gear operation allows smooth and precise control with reduced operating torque. Its robust construction guarantees long service life and dependable performance. As a leading DBB Ball Valve Provider in China, we supply high-quality valves tailored for demanding industrial systems.

Detail Information

Valve Description:
181302096 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 20 Inches, DN500, 500 mm
Pressure: Class 1500 LB, PN250
Body Material: ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F53, ASTM A105N, ASTM A182 F51, ASTM A182 F55, ASTM A182 F304
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
Structure: Full Welded
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
