Key Specifications / Features
Model No. : 16BS6RA105
We provide China Trunnion Mounted Ball Valves, Three Pieces Body, Side Entry, Soft Seat, ASTM A105N, API 6D, 16 Inch, Class 600 LB, RF Ends, and Gear Operation.

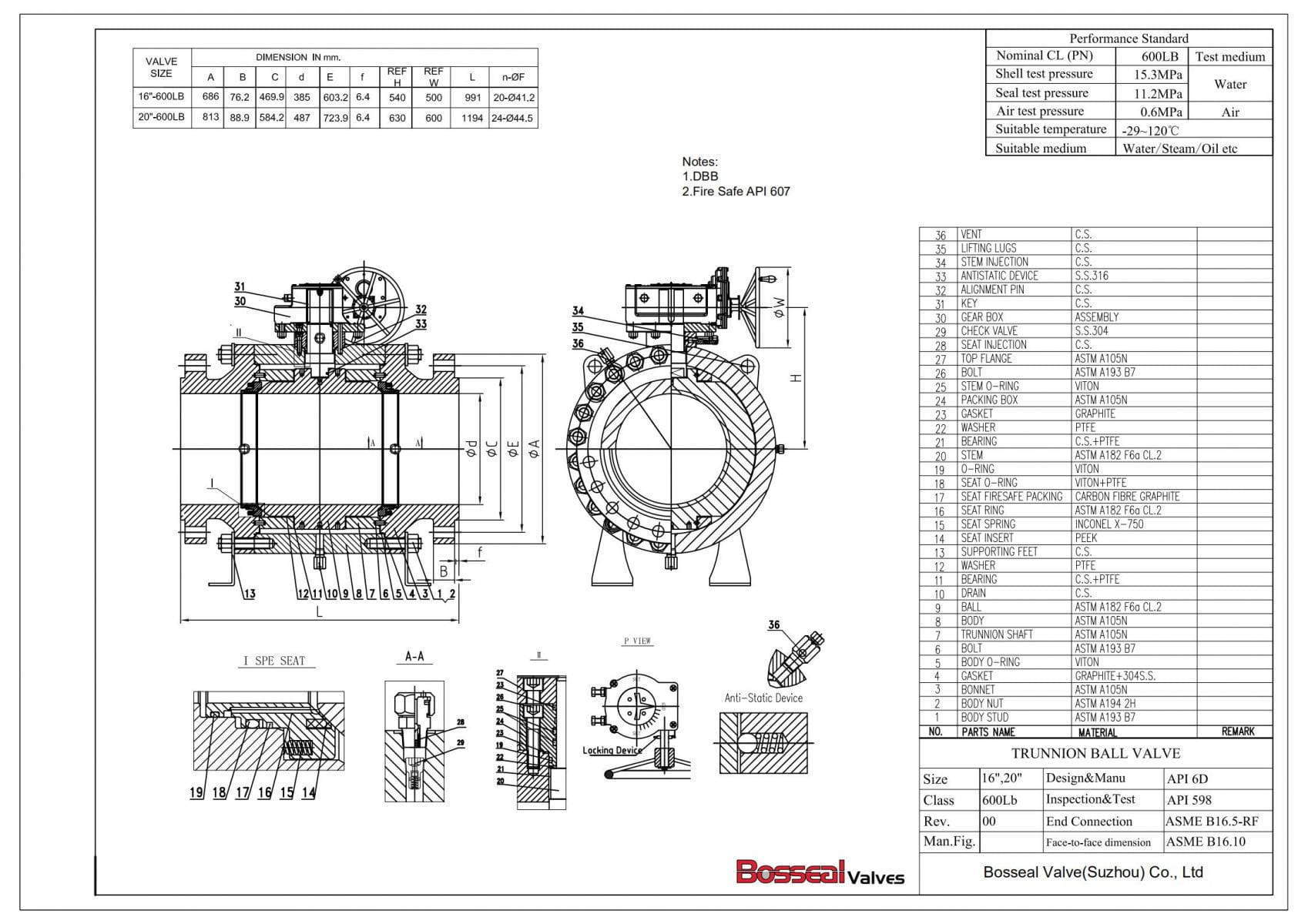

Trunnion Mounted Ball Valve, API 6D, 16IN, 600LB, A105N, RF
Detail Information
Product Item: Trunnion Mounted Ball Valve
Model No.: 16BS6RA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 16 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Model No.: 16BS6RA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 16 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
