Welded Bonnet Forged Globe Valve, A182 F22, 1 IN, ANSI 1500

Key Specifications / Features

Model No. : 1852042

Our ASTM A182 F22 globe valves are engineered to meet API 602 and ASME B16.34 standards. Designed in a 1-inch, Class 1500 LB configuration, these valves feature a Y-pattern design for superior flow control and a welded bonnet to ensure a secure, leak-proof seal. Equipped with a rising stem and handwheel, they offer precise operation and exceptional durability. Perfect for high-pressure applications, our valves provide reliable performance and robust construction. Rely on us for high-quality globe valves that meet the rigorous demands of your industrial needs.

Detail Information

ASME B16.34 Forged Globe Valve, 1 Inch, Class 1500 LB, Welded Bonnet, ASTM A182 F22 Body, NPT End.

Valve Description:

1852042 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Welded Bonnet, Bonnetless, Bolted Bonnet, Pressure Seal Bonnet,
Nominal Size: 1 Inch, DN25
Nominal Class: CL 1500 LB, PN250
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F22, ASTM A182 F11, ASTM A105N, ASTM A182 F316, ASTM A182 F91
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: NPT(National Pipe Thread), BW(Butt Weld), SW(Socket Weld)

Key Features:
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Product Portfolio:

Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Operation: Manual or Actuated
End Connection: BW/SW/NPT
Working Temperature: -29°C to +525°C

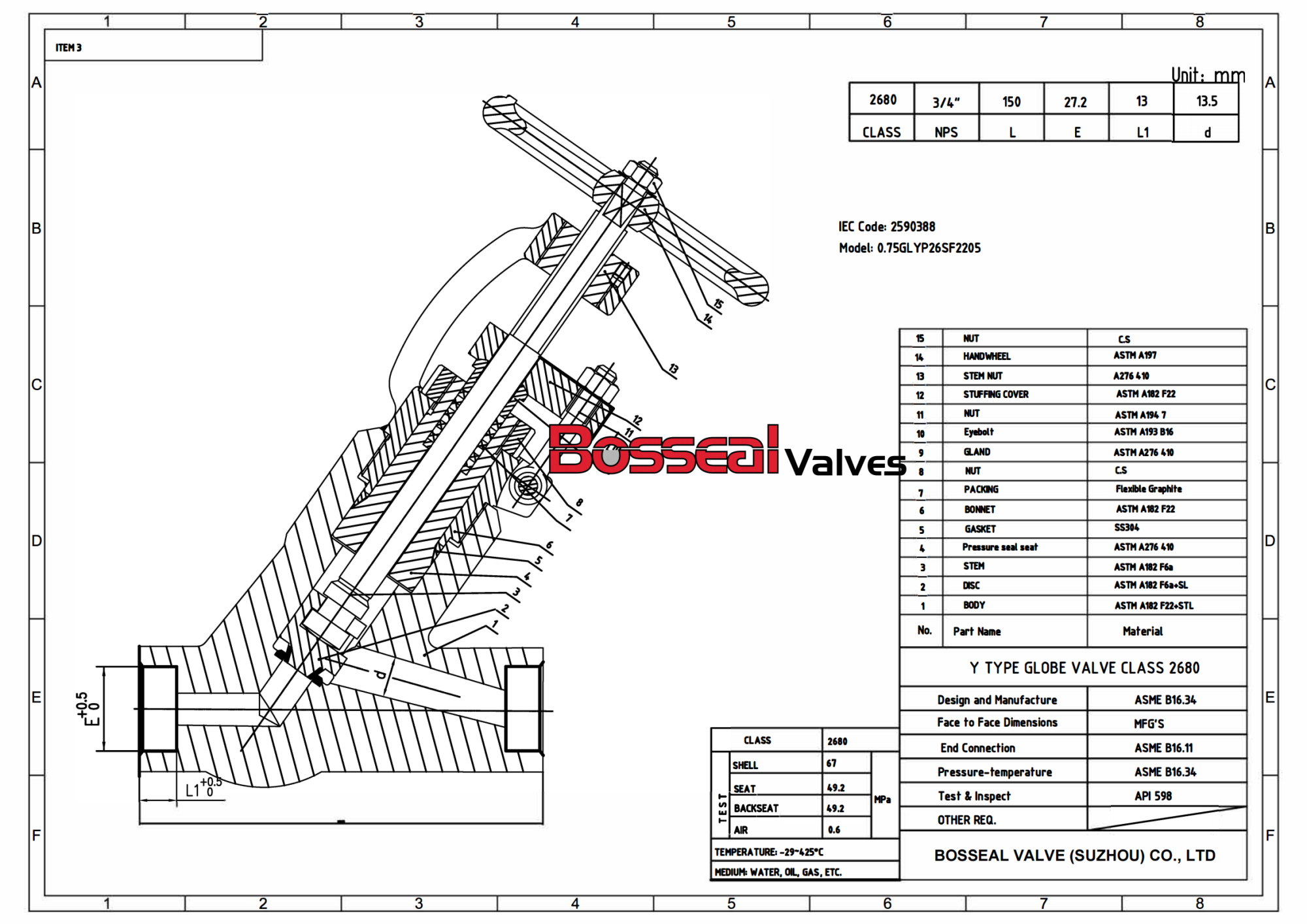

Drawing for Globe Valve
