Key Specifications / Features
Model No. : 1BB8NLF2
Explore top-quality 1-inch 800 LB ball valves meticulously crafted to API 608, ISO 17292, API 6D, and ASTM A350 LF2 standards. Our valves feature SW and FNPT threaded ends, SS 316 trim, RPTFE seats, anti-static and locking devices, ensuring reliability and precision for your industrial needs.
Categories
Floating Ball Valve
Tags:
1 Inch Ball Valve
, Class 800 LB Ball Valve
, ASTM A350 LF2 Ball Valve
.

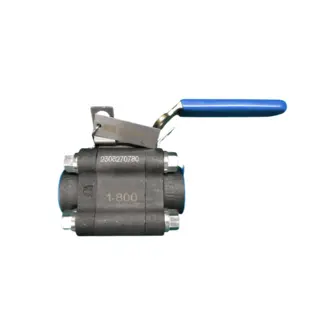

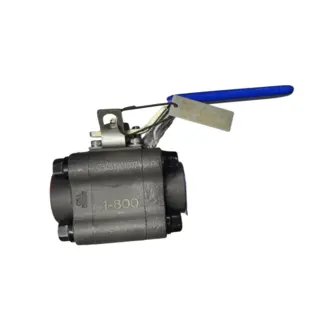

1 inch, 800 LB, Floating Ball Valve, SW/FNPT Threaded End, ISO 17292, LF2 body with 316 Trim, RPTFE seat and lever operation
Valve Description:
1812038 Floating Ball Valve 1BB8NLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch, DN25
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: FNPT
Operation: Lever Lockable
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
