Key Specifications / Features
Model No. : 1BB8SNLF2
Explore top-quality 3PC floating ball valves from a leading manufacturer. Our precision-engineered valve features a 1-inch size, DN25 specifications, and is designed for high-pressure applications with 800 LB and PN130 ratings. Compliant with ISO 17292, API 608, and API 6D standards, this valve is constructed with ASTM A350 LF2 material for durability. The valve is equipped with SW X FNPT threaded ends for easy installation and comes with a lever operation for user-friendly control.
Categories
Floating Ball Valve
Tags:
1 Inch Ball Valve
, Class 800 LB Ball Valve
, ISO 17292 Ball Valve
.

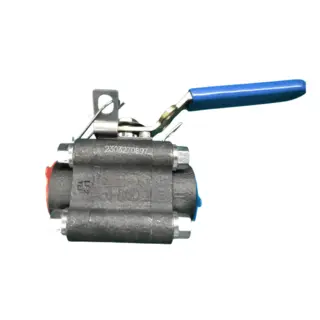

1 inch, 800 LB, Floating Ball Valve, SW X FNPT Threaded End, ISO 17292, LF2 body with 316 Trim, RPTFE seat and lever operation
Valve Description:
1812043 Floating Ball Valve 1BB8SNLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch, DN25
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: FNPT X SW
Operation: Lever Lockable
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
