Key Specifications / Features
As a leading Compact Ball Valve Manufacturer in China, we produce high-performance valves engineered to API 6D design standards for reliable operation in high-pressure systems. Constructed with a durable AISI 4130 or ASTM A694 F60 body and precision 17-4PH trim, these valves offer superior strength, corrosion resistance, and longevity. Featuring a 4-1/4 inch size, 5000 PSI pressure rating, and RTJ end connection, they ensure secure installation and tight sealing. Available with soft seat or metal seat options, our compact ball valves deliver precise flow control and dependable performance across oil, gas, and industrial pipeline applications.
Valve Description:

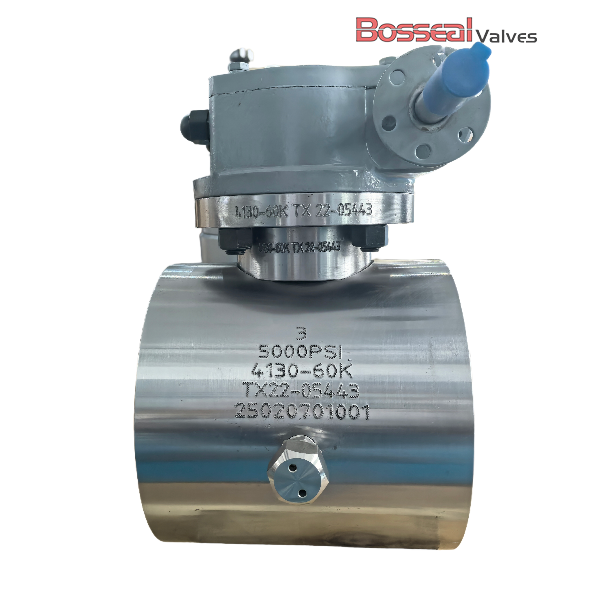

181105050 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
