Key Specifications / Features

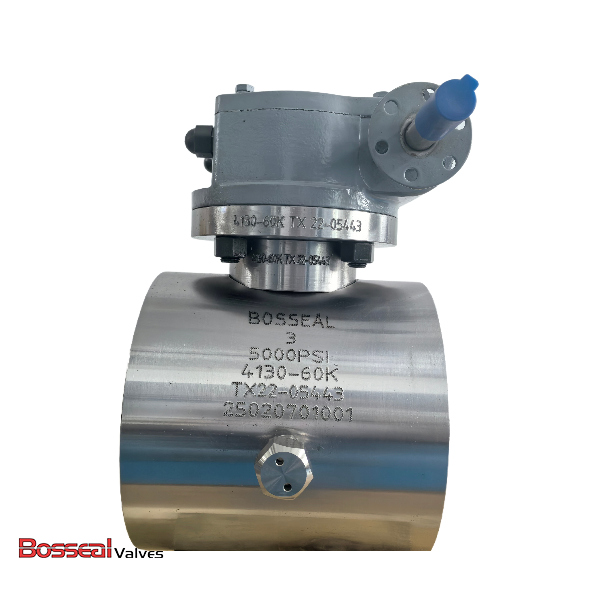

As a trusted Compact Ball Valve manufacturer in China, we produce high-performance valves built to meet API 6A and API 6D standards. Featuring a robust 1-piece body design made from ASTM A694 F60 or F65 material, these valves ensure superior strength and durability under demanding operating conditions. The trim components, crafted from 17-4PH or Inconel, provide excellent resistance to corrosion and wear. With a 5-1/8 inch size, pressure rating of 5000 PSI, and RTJ or BW end connections, these soft-seated ball valves deliver reliable sealing, smooth operation, and outstanding performance for oil, gas, and high-pressure industrial applications.
Valve Description:
181105051 Compact Ball Valve
Design Standard: API 6A/API 6D
Bore Type: Full Bore or Reduced Bore
Body Material: AISI 4130/ASTM A694 F60/F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Structure: 1PC Body
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
