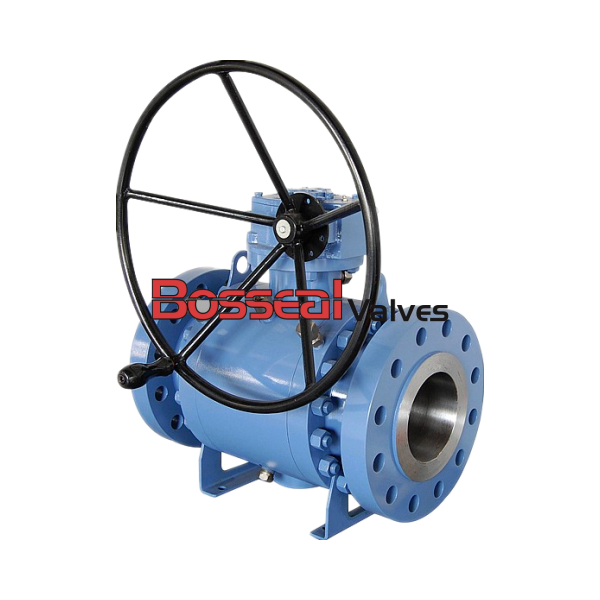

26 Inch 3pcs Ball Valve, ASTM A350 LF2, API 6D, 150 LB, RF

Key Specifications / Features

Model No. : 1811084
Introducing our premium 26-inch 3-piece ball valve, expertly crafted to DN650 standards with a pressure rating of 150 LB and PN20. This forged valve features a bolted bonnet for enhanced durability and safety, meeting API 6D and BS 5351 specifications. Constructed from top-grade materials including ASTM A350 LF2 and ASTM A105N, it ensures reliable performance in demanding conditions. With its trunnion-mounted design and RF end connection, this ball valve delivers exceptional sealing and precision control for your industrial needs.

Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 26 INCH, 150 LB, RF, DEVLON seat

Valve Description:
1811084 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 26 Inch
Nominal class: 150 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
