Key Specifications / Features
Model No. : 6BS1RLF2-DIB1
We Provide Trunnion Ball Valves, 3-PC Body, DPE Seats, Side Entry, ASTM A350 LF2, Full Bore, 6 Inch, Class 150 LB, API 6D, Gear Operation, and RF Flanged Ends.

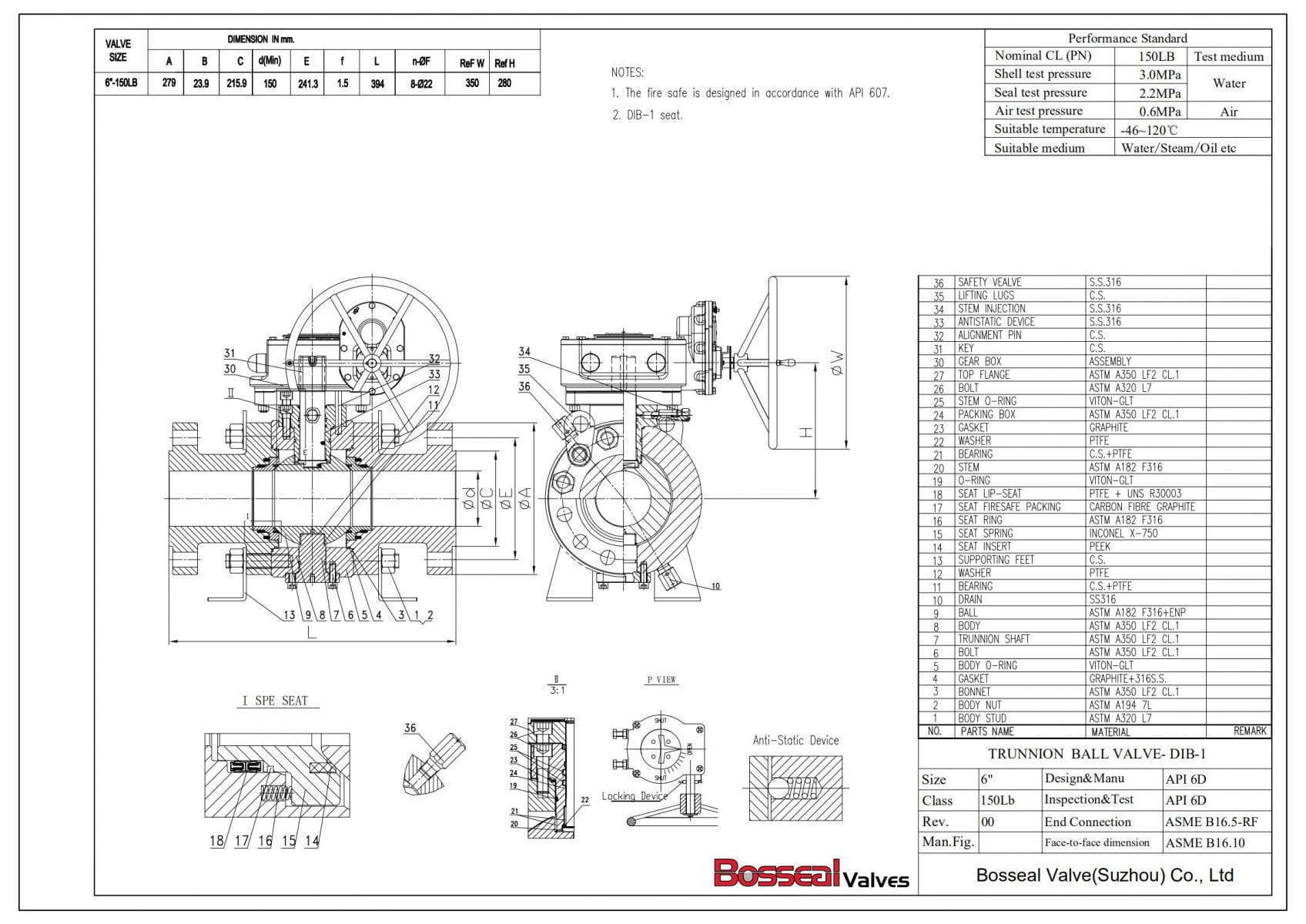

ASTM A350 LF2 Trunnion Ball Valve, 6 Inch, 150 LB, API 6D
Detail Information
Product Item: 1811004 Trunnion Mounted Ball Valve
Model No.: 6BS1RLF2-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316 + ENP, PEEK Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed (DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Model No.: 6BS1RLF2-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316 + ENP, PEEK Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed (DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
