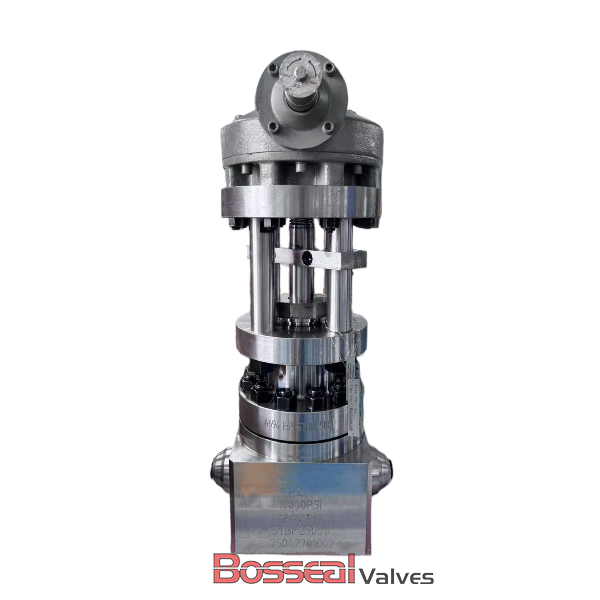

4-1/8 Inch Globe Valve, API 6A, AISI 4130/A694 F65, 15000 PSI

Key Specifications / Features

Model No. : GLV-183103049

As a leading manufacturer of 4-1/8 inch globe valves in China, we specialize in producing valves designed to API 6A standards, ensuring superior performance and reliability. Crafted from high-strength ASTM A694 F65/AISI 4130 materials, these valves are built to withstand demanding conditions, with a working pressure of up to 15,000 PSI. Available with RTJ or BW end connections, they feature 17-4PH or Inconel trim for durability, as well as TCC or Stellite (STL) seats for excellent sealing performance. With gear operation for precise control, our globe valves deliver dependable flow regulation in critical applications.


Detail Information

Valve Description:
183103049 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Bore Type: Standard
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Drawing for API 6A Globe Valves
