API 6A Globe Valves, A694 F65/4130, 3-1/16 IN, 17-4PH Trim

Key Specifications / Features

Model No. : GLV-183103025

As a professional API 6A globe valve manufacturer in China, we deliver reliable solutions engineered for high-pressure oil and gas applications. This globe valve features a robust body made from ASTM A694 F65 or AISI 4130, ensuring strength and durability under demanding conditions. With a size of 3-1/16 inches and a pressure rating of 10,000 PSI, it offers dependable performance in critical operations. The valve is equipped with a 17-4PH trim, TCC/STL seat, and bolted bonnet design, complemented by gear operation for smooth control and extended service life.


Detail Information

Valve Description:
183103025 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Test and Inspection: API 6A
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

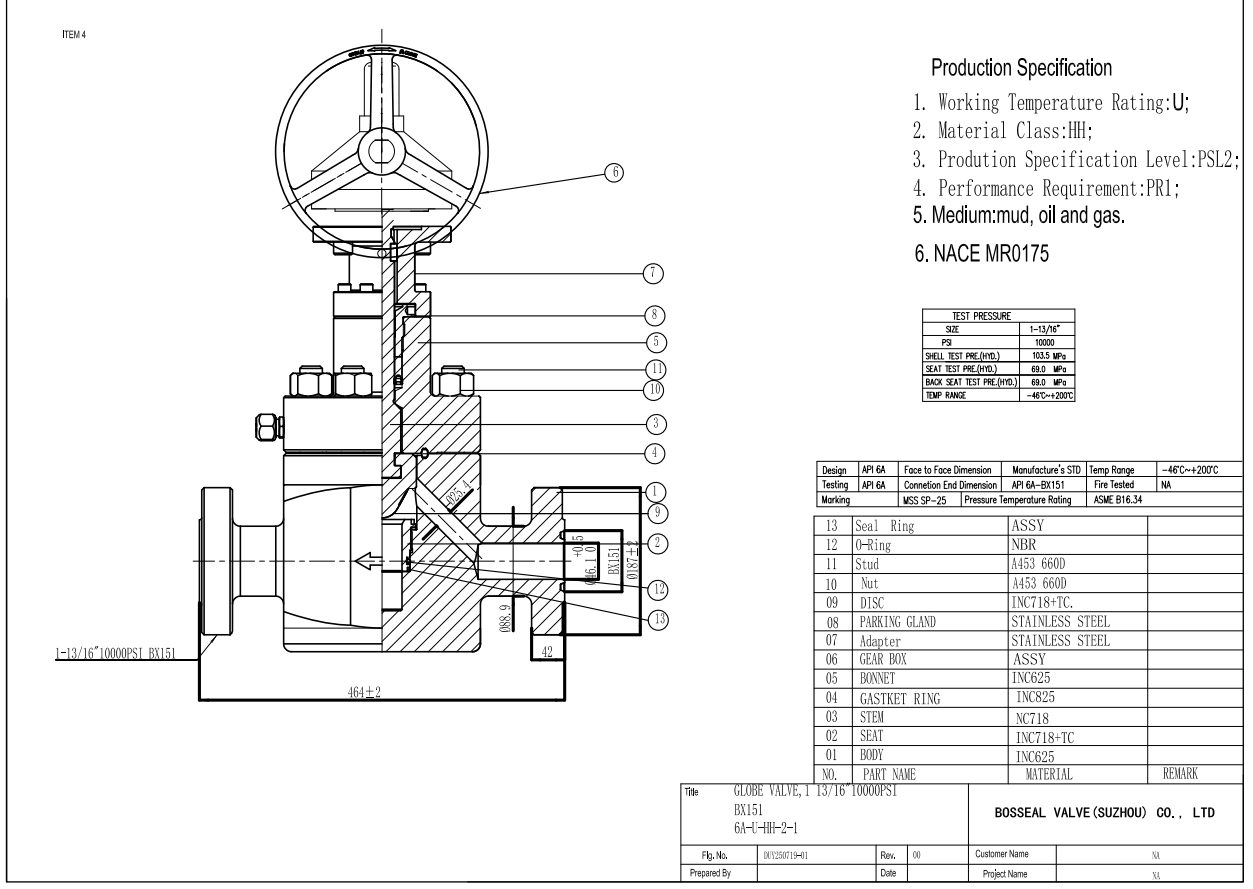

Drawing for Pressure Seal Bonnet Globe Valve
