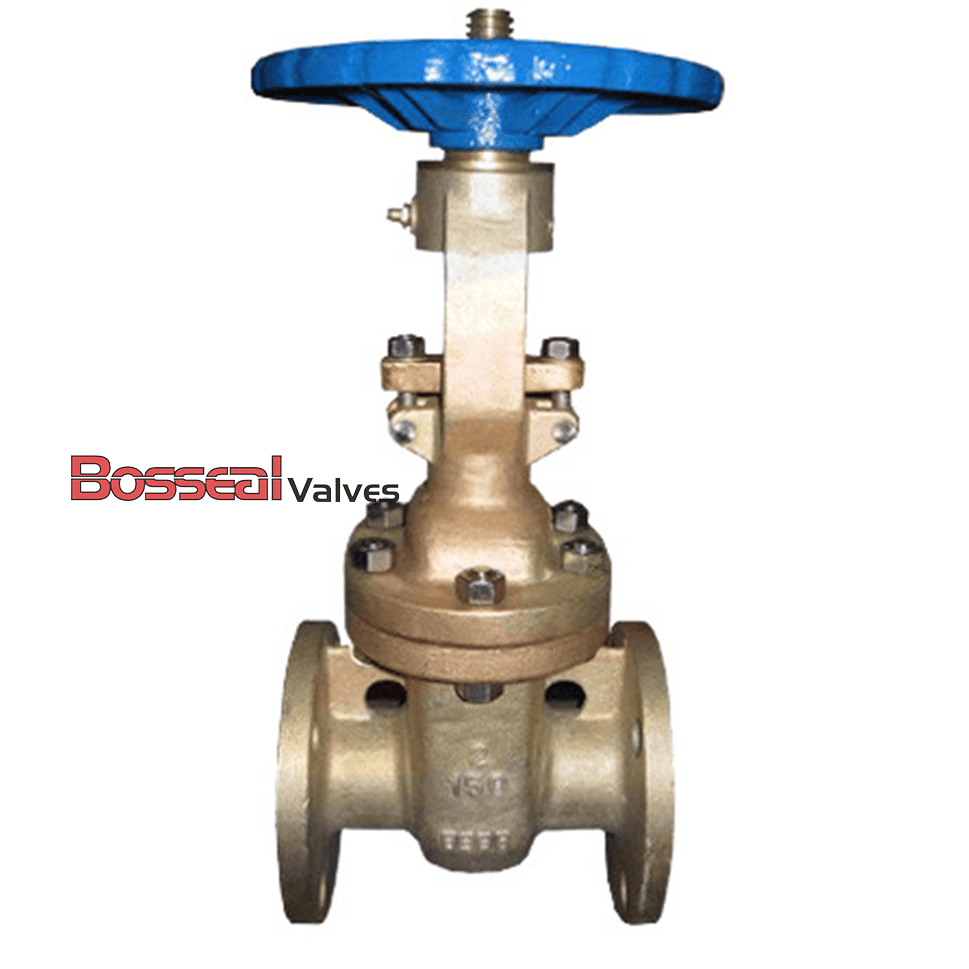

Al-bronze Gate Valves, API 600, B148 C95800, 16 Inch, CL150

Name: Al-bronze Gate Valves, API 600, B148 C95800, 16 Inch, CL150
SKU: gtv-187304010
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GTV-187304010

We are a reputable factory in China specializing in aluminum bronze gate valves, designed in compliance with API 600 standards. Our 16-inch gate valve features a durable ASTM B148 C95800 body and trim, providing excellent corrosion resistance for marine and industrial applications. It is rated for Class 150 LB and equipped with a bolted bonnet for secure sealing and easy maintenance. The OS&Y configuration ensures clear stem position indication, while flat face (FF) or raised face (RF) flanged ends allow flexible installation. Built for strength, reliability, and long-lasting performance in harsh environments.

Request a quote

Tags:

Al-bronze Gate Valve

API 600 Gate Valve

ASTM B148 C95800 Gate Valve

Detail Information

Valve Description:
187304010 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 16 Inch, DN400
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

Next: 18 Inch Gate Valves, Aluminum Bronze, C95800, CL150 LB, RF

Previous: Pressure Seal Bonnet Gate Valve, C95800, 14 IN, 150 LB, OS&Y

Similar Products

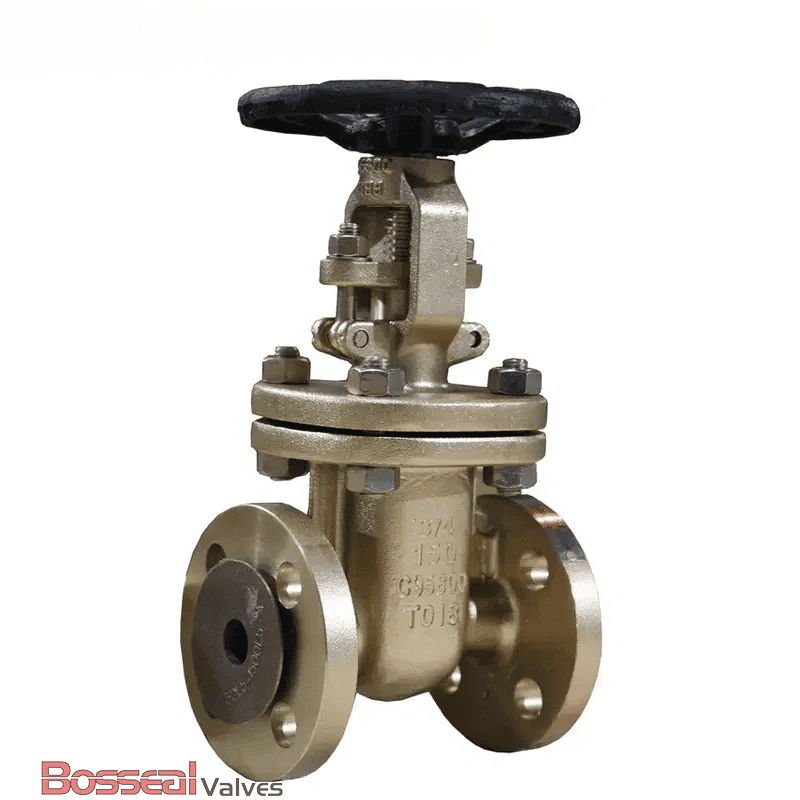

Rising Stem Gate Valves, API 600, Al-bronze, 32 IN, CL150 LB

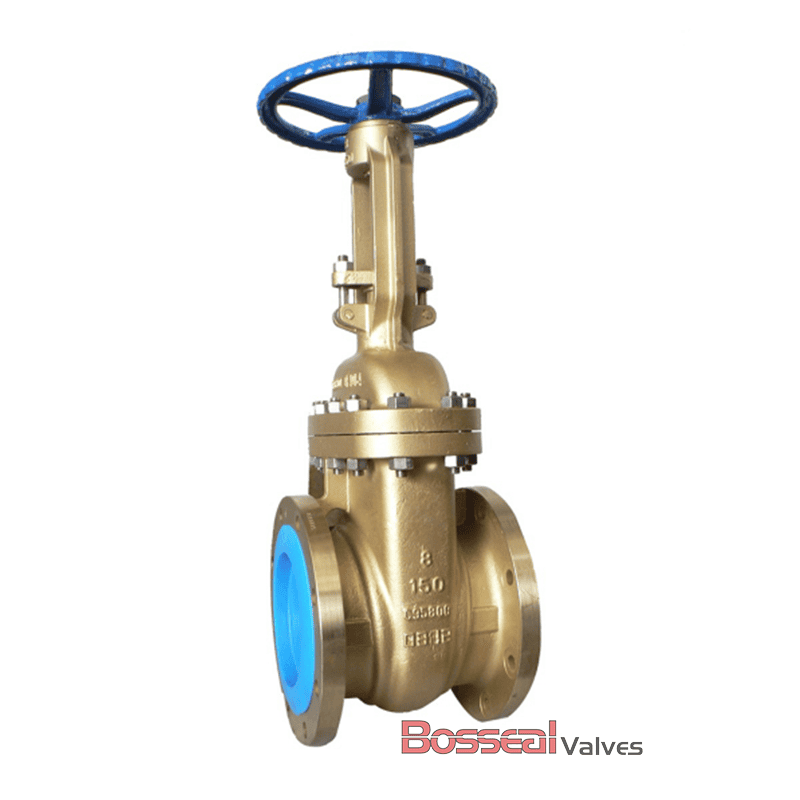

Bolted Bonnet Gate Valve, Al-bronze C95800, 30 IN, RF Flanged

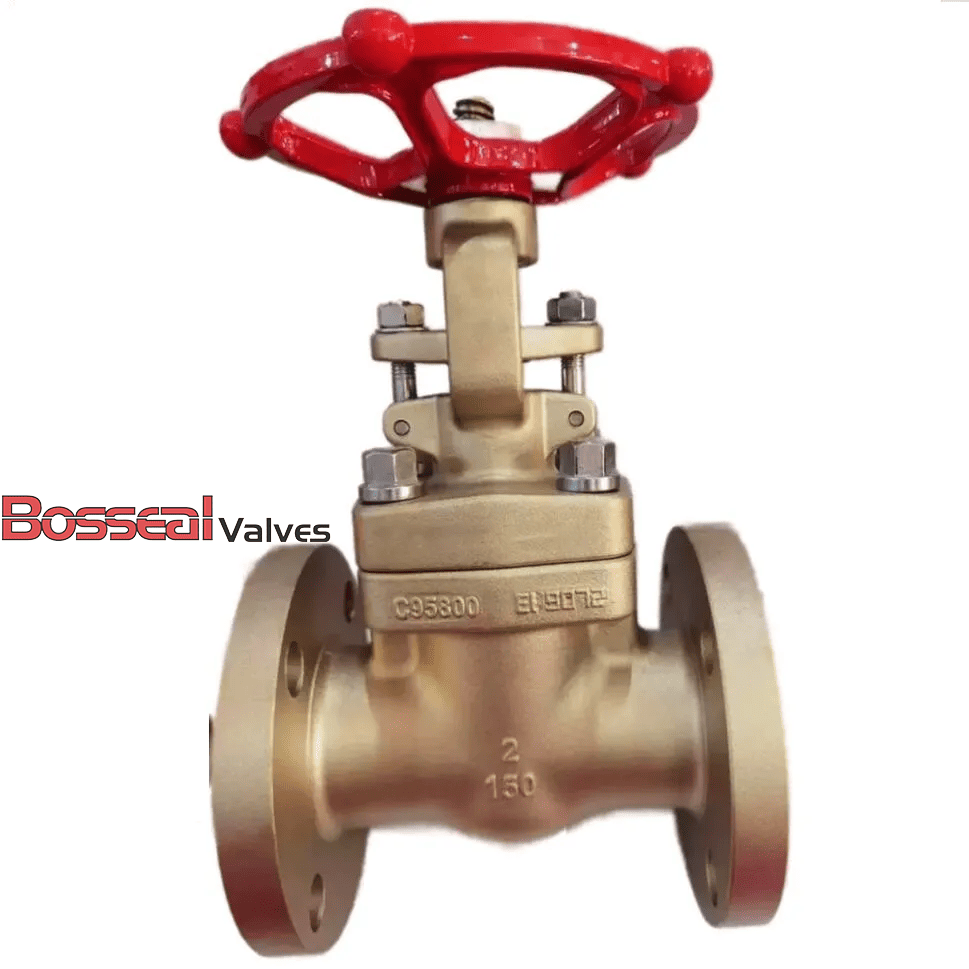

API 600 Flanged Gate Valves, Al-bronze, 4 Inch, 150 LB, RF
