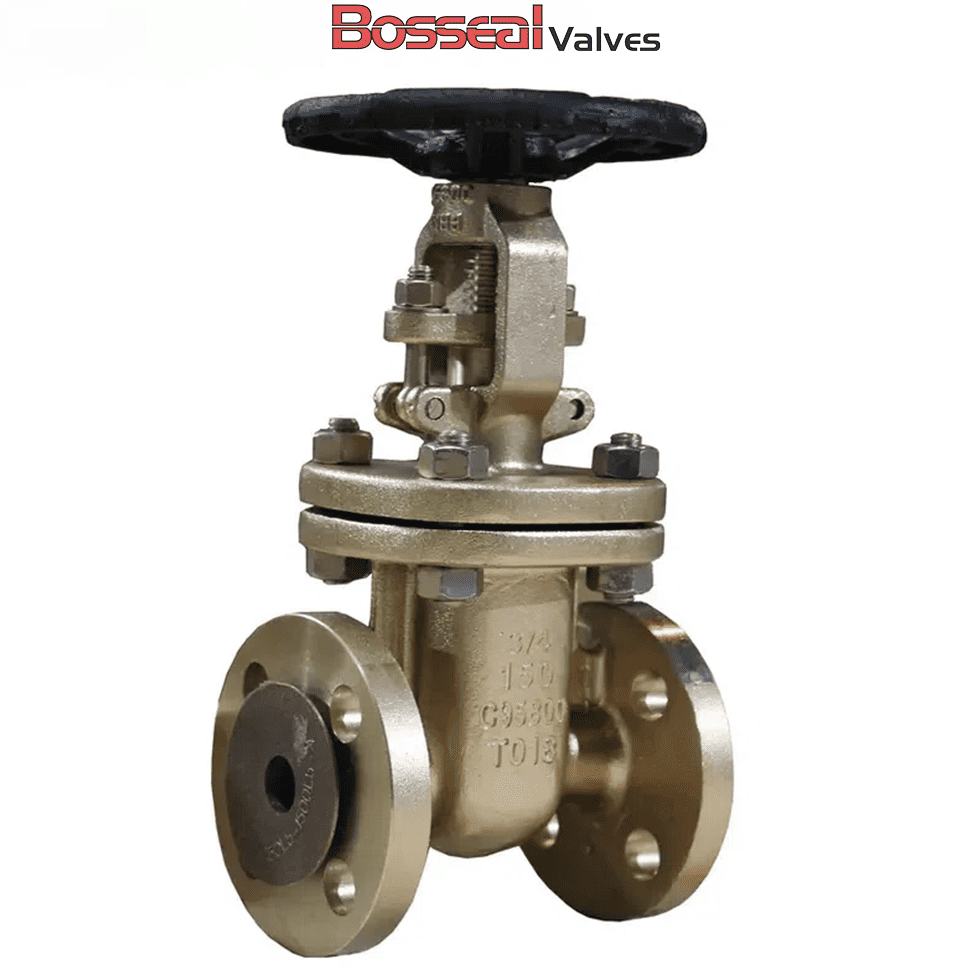

18 Inch Gate Valves, Aluminum Bronze, C95800, CL150 LB, RF

Key Specifications / Features

Model No. : GTV-187304011

We are a reliable supplier of aluminum bronze gate valves, designed to API 600 standards for dependable performance in corrosive environments. This 18-inch valve features a robust ASTM B148 C95800 body and trim, offering outstanding resistance to seawater and aggressive media. It is rated for Class 150 LB and includes a pressure seal bonnet, ensuring tight sealing under high-pressure conditions. The OS&Y design provides clear stem visibility and smooth operation, while raised face (RF) flanged ends allow for secure and versatile installation. Ideal for marine, offshore, and industrial applications requiring durability and safety.


Detail Information

Valve Description:
187304011 Aluminium Bronze Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 18 Inch, DN450
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
