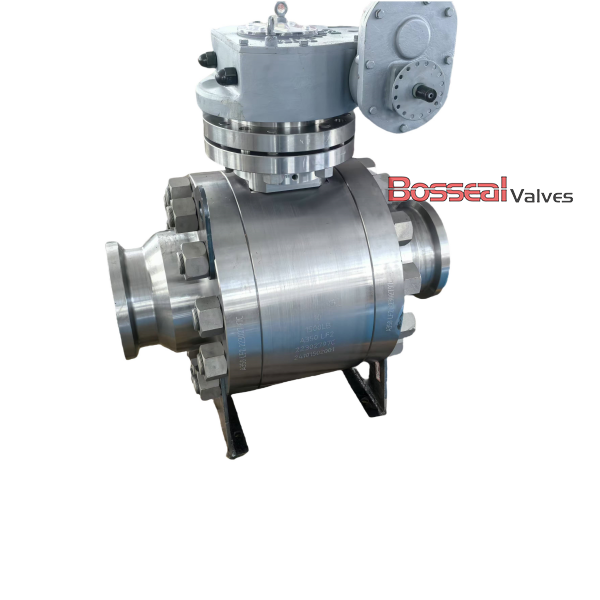

Alloy Steel Ball Valve, F60/F65/AISI 4130, API 6A, 2-9/16 IN

Key Specifications / Features

Model No. : BV-181104024

We are a reliable provider of alloy steel ball valves in China, offering products engineered to API 6A specifications. Our 2-9/16 inch ball valves are built with robust materials such as AISI 4130, ASTM A694 F60, or F65, ensuring superior strength and durability. Featuring a bolted bonnet design and RTJ end connections, these valves are ideal for high-pressure service. The metal seat and high-performance trim—crafted from 4140 and F51—provide excellent resistance to wear and corrosion, making them well-suited for challenging oil and gas applications demanding long-lasting performance.

Detail Information

Valve Description:
181104024 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing

Working Pressure of Alloy Steel Ball Valve
