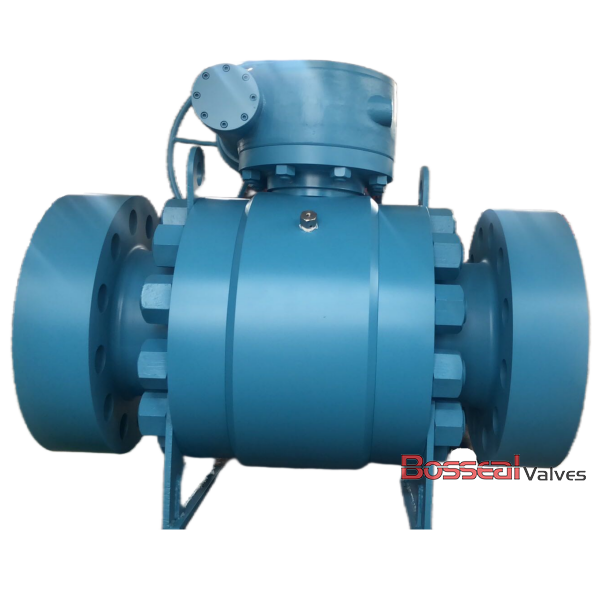

AISI 4130 Ball Valves, API 6A, 2-1/16 Inches, 3000 PSI, BW

Key Specifications / Features

Model No. : BV-181104023

We are a ball valve factory in China specializing in 3000 PSI valves designed to API 6A standards. This 2-1/16 inch ball valve features a robust AISI 4130 forged steel body and butt-weld (BW) end connections for secure pipeline integration. The valve offers seat options in PEEK, TCC, or STL to suit various service conditions. With high-performance trim materials such as 17-4PH and Inconel, it ensures excellent corrosion and wear resistance. Operated by lever for manual control, it is ideal for demanding oil and gas applications requiring durability and reliability.

Detail Information

Valve Description:
181104023 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Test and Inspection: API 6A
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing


Structure of AISI 4130 Ball Valves
