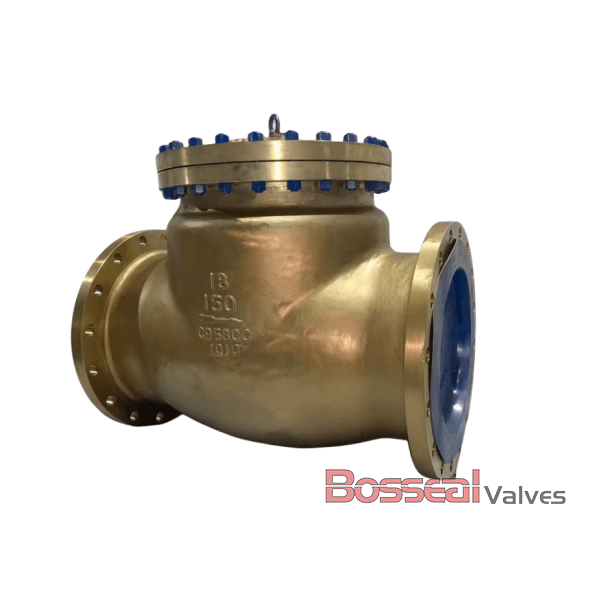

Aluminium Bronze Check Valve, API 6D, 2 Inch, CL150, RF Ends

Key Specifications / Features

Model no. : CKV-187306001

As a leading aluminum bronze check valve manufacturer, we offer a 2-inch valve engineered to meet API 6D, BS 1868, and API 594 standards. Constructed from high-strength ASTM B148 C95800 aluminum bronze, it provides exceptional resistance to corrosion, making it ideal for marine, offshore, and other aggressive environments. Rated for Class 150 LB and equipped with RF flanged ends, this valve ensures reliable backflow prevention and easy installation. Built for durability and dependable performance, it is well-suited for critical flow control applications across a range of industries.

Detail Information

Valve Description:
187306001 Aluminium Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 2 Inch
Nominal Class: 150 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
