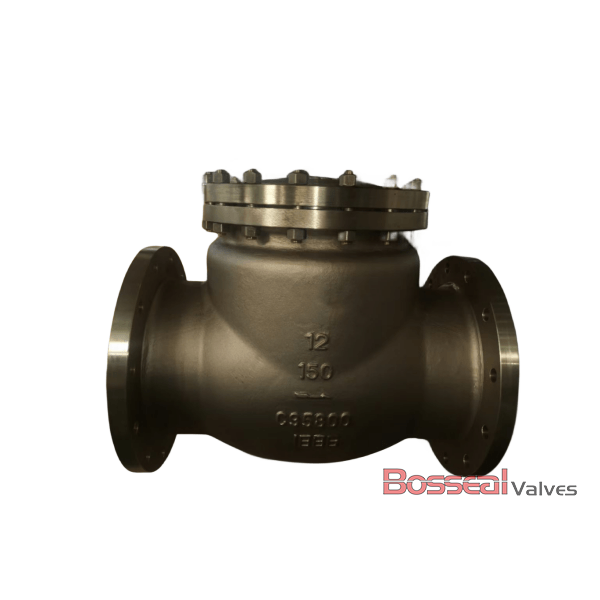

Aluminum Bronze C95800 Check Valve, BS 1868, 30 Inch, CL150

Name: Aluminum Bronze C95800 Check Valve, BS 1868, 30 Inch, CL150
SKU: sckv-187306016
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : SCKV-187306016

We are a dependable aluminum bronze check valve supplier in China, offering high-quality valves designed to BS 1868 and API 594 standards for superior backflow prevention. Our check valves feature a robust ASTM B148 C95800 aluminum bronze body and trim, providing exceptional corrosion resistance for seawater and harsh industrial environments. This 30-inch model is rated for Class 150 LB and comes with a secure bolted bonnet, ensuring long-lasting sealing and easy maintenance. Equipped with RF flanged ends, our valves deliver reliable, leak-free connections for a wide range of pipeline applications.

Request a quote

Tags:

BS 1868 Check Valve

Aluminum bronze Check Valve

ASTM B148 C95800 Check Valve

Detail Information

Valve Description:
187306016 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 30 Inch
Nominal Class: 150 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
