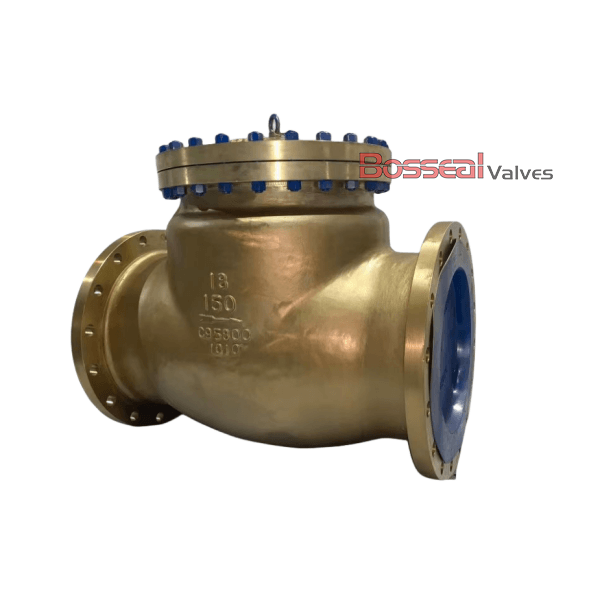

API 6D Swing Check Valves, Al-bronze C95800, 32 Inch, 150 LB

Key Specifications / Features

Model no. : SCKV-187306017

We are a leading swing check valve factory in China, specializing in durable valves engineered to API 6D and BS 1868 design standards. Our swing check valves feature a high-quality ASTM B148 C95800 aluminum bronze body and trim, providing outstanding corrosion resistance for seawater and demanding industrial applications. This 32-inch model is rated for Class 150 LB and comes with a reliable bolted bonnet for secure sealing and straightforward maintenance. Offered with flat face (FF) or raised face (RF) flanged ends, our valves ensure tight, leak-free connections for various piping systems.


Detail Information

Valve Description:
187306017 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 32 Inch
Nominal Class: 150 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Al-bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
