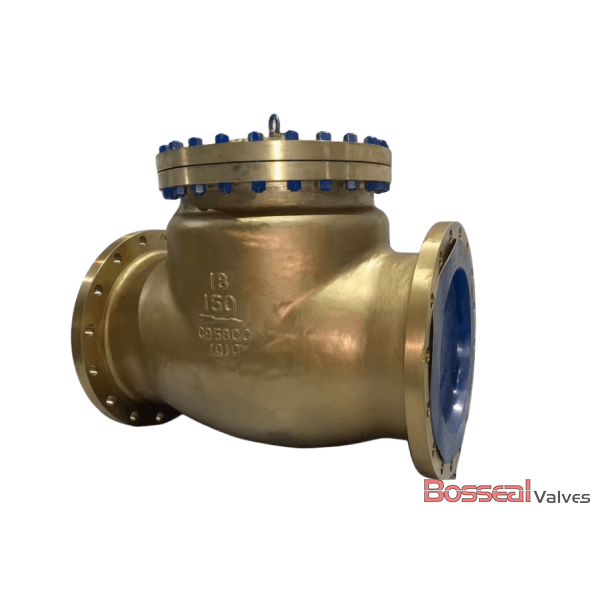

Aluminum Bronze Check Valves, API 594, C95800, 16 IN, 300 LB

Name: Aluminum Bronze Check Valves, API 594, C95800, 16 IN, 300 LB
SKU: ckv-187306031
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CKV-187306031

As a trusted aluminum bronze check valve manufacturer in China, we specialize in producing high-quality valves that meet international standards such as API 594, API 6D, and BS 1868. Our check valves are crafted with durable ASTM B148 C95800 aluminum bronze body and trim, ensuring excellent corrosion resistance and long-term performance in demanding applications. Featuring a robust bolted bonnet design, these valves are available in sizes up to 16 inches, Class 300 LB rating, with RF flanged ends for secure and reliable installation.

Request a quote

Tags:

Aluminum bronze Check Valve

API 594 Check Valve

ASTM B148 C95800 Check Valve

Detail Information

Valve Description:
187306031 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 16 Inch
Nominal Class: 300 LB
Body Material: ASTM B148 C95800
Operation: NA
Trim Material: ASTM B148 C95800
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
