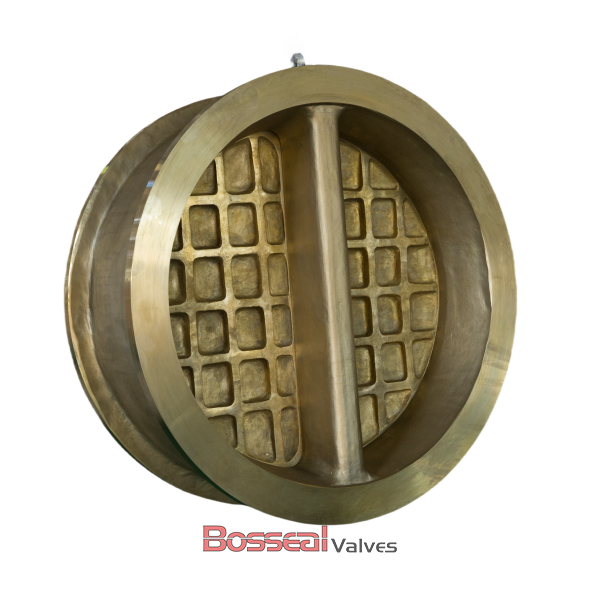

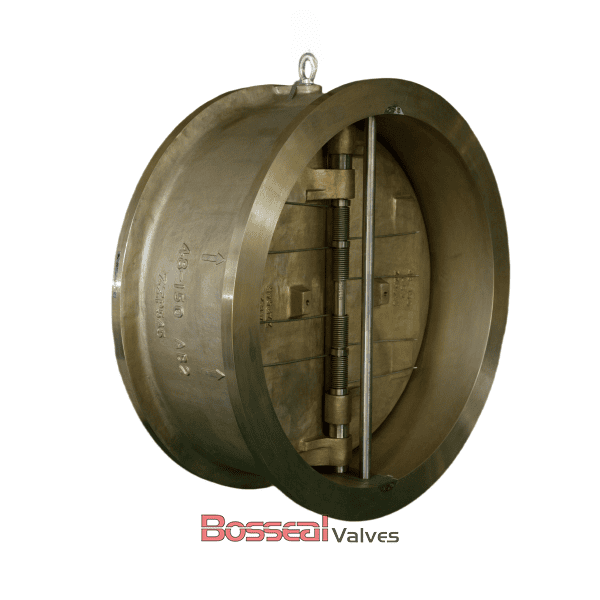

Aluminum Bronze Check Valves, C95800, 16 IN, CL300, Flanged

Key Specifications / Features

Model no. : CV-187303031

We are a reliable supplier of dual plate check valves designed to API 594 standards for efficient non-return flow control. This 16-inch valve features a corrosion-resistant body made from aluminum bronze ASTM B148 C95800, ensuring long-lasting durability in harsh environments. Rated for Class 300 LB, it is available with wafer, lug, or flanged end connections to suit various installation requirements. Seat options include NBR, Viton, or EPDM, allowing compatibility with a wide range of fluids. Ideal for marine, industrial, and chemical systems where dependable backflow prevention is essential.


Detail Information

Valve Description:
187303031 Dual Plate Check Valve
Design Standard: API 594
Nominal Size: 16 Inch, DN400
Nominal Class: 300 LB
Structure: Spring-loaded, Dual Plate
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
