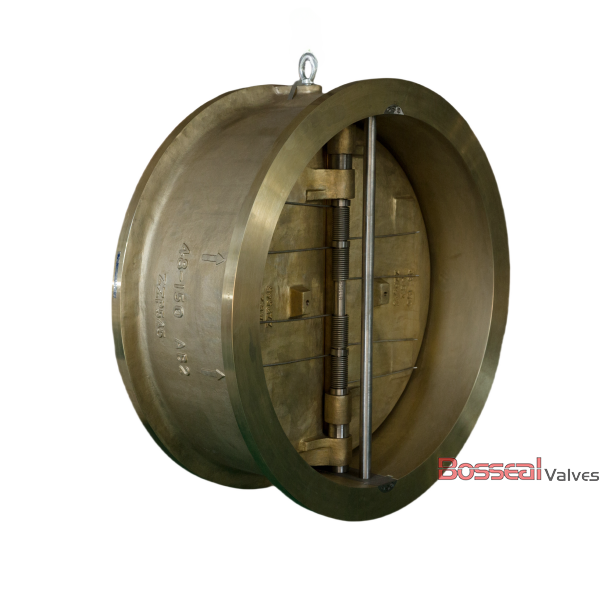

API 594 Check Valves, Dual Plate, B148 C95800, 36 IN, 150 LB

Name: API 594 Check Valves, Dual Plate, B148 C95800, 36 IN, 150 LB
SKU: cv-187303018
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303018

As a leading dual plate check valve factory, we specialize in manufacturing API 594 compliant valves. This 36-inch valve features a durable aluminum bronze body and disc made from ASTM B148 C95800 for exceptional strength and corrosion resistance. Rated for Class 150 LB, it is equipped with NBR, Viton, or EPDM seat options, ensuring optimal sealing performance across a range of applications. Available with wafer, lug, or flanged ends, this valve is designed for efficient backflow prevention and long-lasting reliability in demanding industrial environments.

Request a quote

Tags:

API 594 Check Valve

ASTM B148 C95800 Check Valve

36 Inch Check Valve

Detail Information

Valve Description:
187303018 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 36 Inch, DN900
Nominal Class: 150 LB, PN20
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
