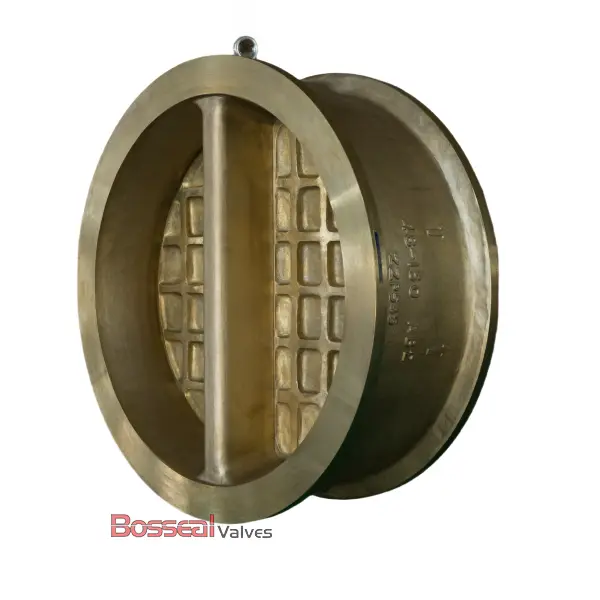

ASTM B148 C95800 Check Valves, API 594, Al-bronze, 32 Inches

Name: ASTM B148 C95800 Check Valves, API 594, Al-bronze, 32 Inches
SKU: cv-187303017
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303017

As a trusted API 594 check valve supplier, we provide high-performance valves with a durable aluminum bronze body and disc made from ASTM B148 C95800. This 32-inch (DN800) valve features a spring-loaded, dual plate design, ensuring efficient operation and reliable backflow prevention. Rated for Class 150 LB, it offers a compact design that saves space without compromising on strength or performance. Ideal for demanding industrial applications, our valves deliver long-lasting durability and superior corrosion resistance, making them the perfect solution for various fluid control systems.

Request a quote

Tags:

ASTM B148 C95800 Check Valve

API 594 Check Valve

Al-bronze Check Valve

Detail Information

Valve Description:
187303017 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 32 Inch, DN800
Nominal Class: 150 LB
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)

Next: API 594 Check Valves, Dual Plate, B148 C95800, 36 IN, 150 LB

Previous: API 594 Aluminium Bronze Check Valve, 30 Inch, Class 150 LB

Similar Products

Spring-loaded Check Valve, Al-bronze, C95800, 40 IN, 150 LB

API 594 Al-bronze Check Valve, C95800, 12IN, 150 LB, Flanged

API 594 Dual Plate Check Valve, Al-bronze, 2 IN, CL150, Wafer

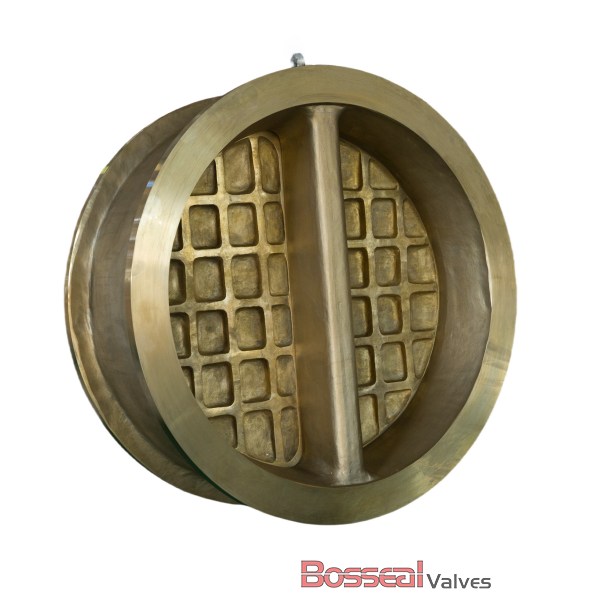

API 594 Flanged Check Valve, Al-bronze C95800, 42 IN, CL150
