API 602 Y Globe Valve, ASTM A182 F11, 1-1/2 IN, 2680 LB, SW

Home/Products/Globe Valves/API 602 Y Globe Valve, ASTM A182 F11, 1-1/2 IN, 2680 LB, SW

Key Specifications / Features

Model No. : 1.5GLY26SF1105

Get top-notch performance with our API 602 Globe Valve. This provider offers a 1-1/2 inch valve with a remarkable 2680 LB capacity. Meeting ASME B16.34 standards, it boasts a DN40 size and is constructed from ASTM A182 F11 material. Featuring a No.5 Trim and Y Pattern design, this valve comes equipped with a Pressure Seal Bonnet for optimal performance. With a Regular Bore and SW (Socket Weld) connection, it ensures reliable operation in various industrial settings.

Request a quote

Tags:

ASTM A182 F11 Globe Valve

1-1/2 Inch Globe Valve

Class 2680 LB Globe Valve

Detail Information

Forged Y Pattern Globe Valve, API 602, 1-1/2 INCH, 2680 LB, SW End, F11 Body, Trim 5, Handwheel

Valve Description:
1852033 API 602 Forged Globe Valve 1.5GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, Y pattern
Nominal size: 1-1/2 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), for power plant, steam, high temperature

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel

Next: Pressure Seal Bonnet Y Globe Valve, 2IN, CL2680, A182 F11

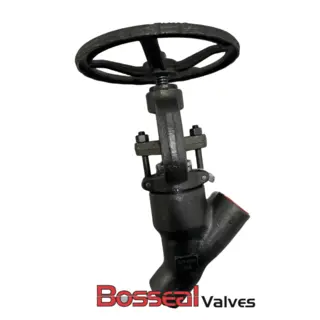

Previous: ASME B16.34 Y Globe Valve, 1 Inch, 2680 LB, ASTM A182 F11

Similar Products

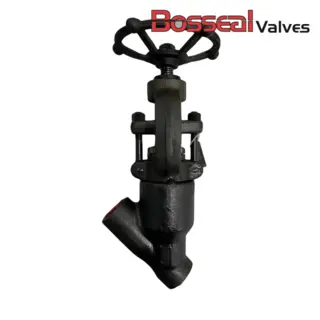

ASTM A182 F11 Y Globe Valve, 3/4 Inch, 2680 LB, ASME B16.34

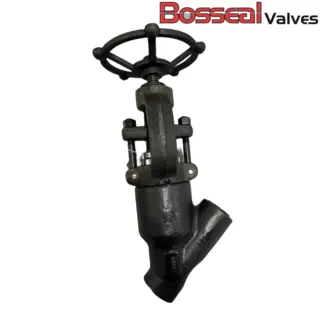

Y Pattern Globe Valve, ASTM A182 F11, 1/2 Inch, 2680 LB, SW
