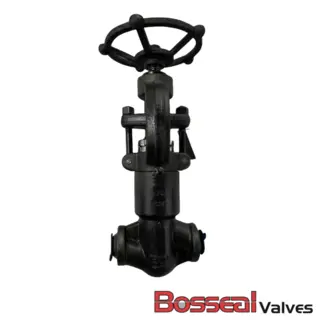

ASTM A182 F11 Y Globe Valve, 3/4 Inch, 2680 LB, ASME B16.34

Home/Products/Globe Valves/ASTM A182 F11 Y Globe Valve, 3/4 Inch, 2680 LB, ASME B16.34

Key Specifications / Features

Model No. : 0.75GLY26SF1105

Looking for a reliable ASTM A182 F11 Globe Valve manufacturer? Look no further! Our globe valves come in a standard 3/4 inch size, suitable for DN20 specifications, and are designed to handle pressures up to 2680 LB. Compliant with ASME B16.34 and API 602 standards, our forged Y pattern valves feature a pressure seal bonnet and OS & Y design. With a socket weld end, our globe valves ensure optimal performance and durability for your industrial applications. Trust our expertise for top-quality valves that meet your needs seamlessly.

Request a quote

Tags:

ASTM A182 F11 Globe Valve

3/4 Inch Globe Valve

Class 2680 LB Globe Valve

Detail Information

Forged Y Pattern Globe Valve, API 602, 3/4 INCH, 2680 LB, SW End, F11 Body, Trim 5, Handwheel

Valve Description:
1852031 API 602 Forged Globe Valve 0.75GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, Y pattern
Nominal size: 3/4 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), for power plant, steam, high temperature

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel
