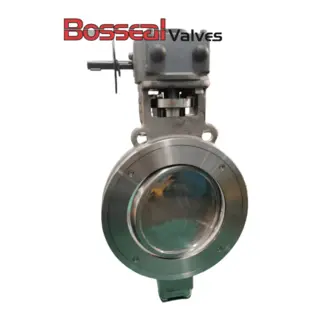

API 609 Cat B Butterfly Valve, ASTM A351 CF8, 10 IN, 300 LB

Home/Products/Butterfly Valves/Double Offset Butterfly Valve/API 609 Cat B Butterfly Valve, ASTM A351 CF8, 10 IN, 300 LB
API 609 Cat B Butterfly Valve, ASTM A351 CF8, 10 IN, 300 LB

Key Specifications / Features

Model No. : 10TB3WCF8
Procure high-quality API 609 Category B butterfly valves with specifications including 10-inch diameter, 300-pound pressure rating, ASTM A351 CF8 construction, featuring a double offset design. Crafted with a stainless steel body and disc, ensuring durability. Equipped with RPTFE seat for optimal sealing performance. Operated smoothly with gear operation. These wafer-style valves are RF-flanged for easy installation and maintenance. Trust in their reliability for your industrial applications.

Detail Information

Double Offset Butterfly Valve, High Performance, API 609, 10 inch, 300 LB, Wafer, Stainless Steel A351 CF8 body & Disc, RPTFE seat, Gear Operation, Bi-directing Sealing, End Service

Valve Description:
1862023 Double Offset Butterfly Valve 10TB3WCF8
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 10 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: Gear Operation
Body Material: ASTM A351 CF8
Trim Material: ASTM A351 CF8 disc, RPTFE+SS Fire Safe seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close(million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, End service

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
