Key Specifications / Features
Model No. : 6TB3WCF8M

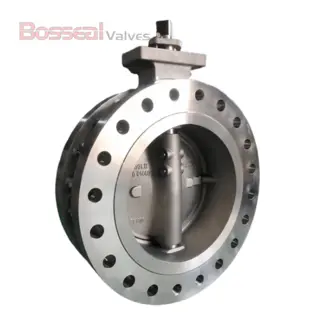

Discover our high-quality ASTM A351 CF8M double offset butterfly valve, designed for superior performance. This valve, with a mill of 6 inches and a pressure rating of 300 LB, complies with API 609 Category B standards. Crafted from durable stainless steel, it features an RPTFE seat for reliable sealing. Operated smoothly with gear operation, it's equipped with wafer RF ends for easy installation. Trust in this valve for efficient and dependable flow control in your industrial applications.
Categories
Double Offset Butterfly Valve
Tags:
ASTM A351 CF8M Butterfly Valve
, 6 Inch Butterfly Valve
, Class 300 LB Butterfly Valve
.
Double Offset Butterfly Valve, High Performance, API 609, 6 inch, 300 LB, Wafer, Stainless Steel A351 CF8M body & Disc, RPTFE+SS fire safe seat, Gear Operation, Bi-directing Sealing
Valve Description:
1862030 Double Offset Butterfly Valve 6TB3WCF8M
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 6 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: Gear Operation
Body Material: ASTM A351 CF8M
Trim Material: ASTM A351 CF8M disc, RPTFE+SS Fire Safe seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
