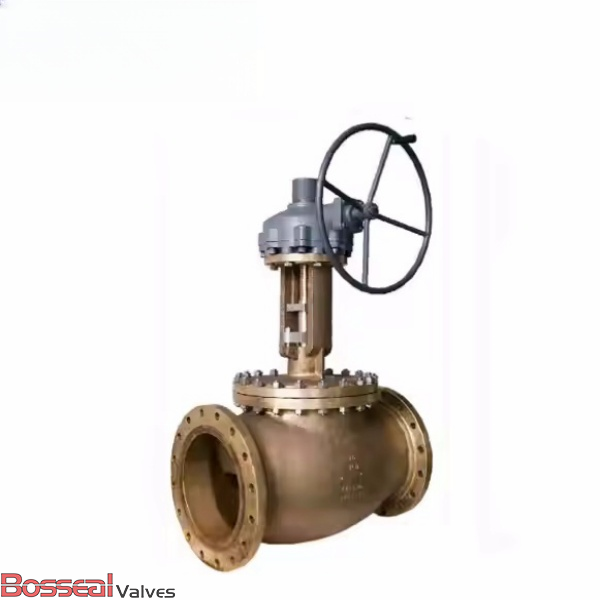

API 623 Aluminum Bronze Globe Valve, B148 C95800, 4 IN, CL300

Key Specifications / Features

Model No. : GLV-187305025

We are a leading manufacturer of aluminum bronze globe valves, engineered to API 623 and BS 1873 standards for superior performance and durability. Featuring a robust ASTM B148 C95800 aluminum bronze body and trim, our 4-inch globe valves are well-suited for harsh and corrosive environments. Rated for Class 300 LB, these valves incorporate a pressure seal bonnet for secure, leak-tight operation under high pressure. The outside screw and yoke (OS&Y) design ensures ease of maintenance, while RF flanged ends provide reliable pipeline connection. Ideal for marine, offshore, and industrial applications.

Detail Information

Valve Description:
187305025 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 4 Inch
Nominal Class: 300 LB
Test and Inspection: API 598
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Bore Type: Standard Bore
End Connection: FF or RF Flanged

Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
