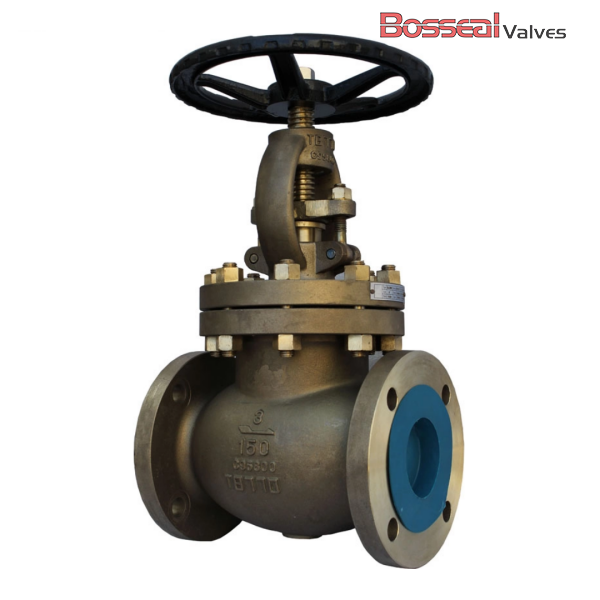

Aluminum Bronze Globe Valve, C95800, OS&Y, 6 Inch, CL300 LB

Key Specifications / Features

Model No. : GLV-187305026

We are a trusted supplier of aluminum bronze globe valves, designed by BS 1873 and API 623 standards for reliable flow control. Built with a high-strength ASTM B148 C95800 aluminum bronze body and trim, our 6-inch globe valves deliver excellent corrosion resistance, making them ideal for marine, offshore, and industrial applications. Featuring an outside screw and yoke (OS&Y) design, these valves ensure easy operation and maintenance. Rated for Class 300 LB, they are available with flat face (FF) or raised face (RF) flanged ends to suit various installation needs.


Detail Information

Valve Description:
187305026 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 6 Inch
Nominal Class: 300 LB
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
