Key Specifications / Features

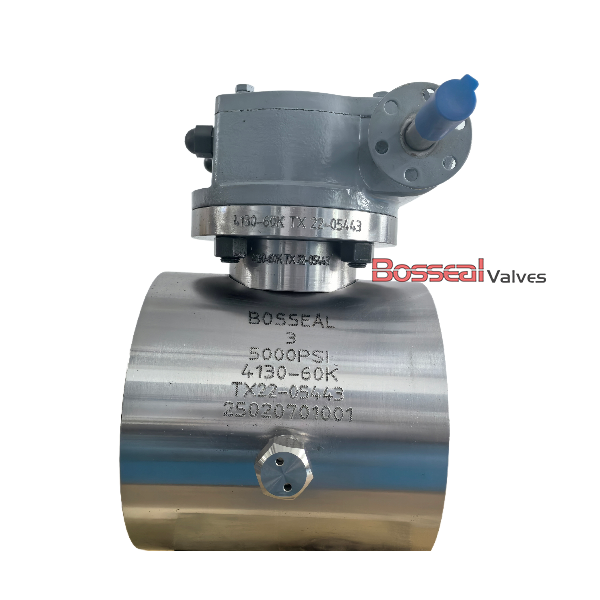

As a leading API 6A Ball Valve Manufacturer in China, we specialize in high-performance ball valves designed for demanding applications. Our valves feature an ASTM A694 F65 body combined with durable 4140, F51, or 17-4PH trim, ensuring excellent strength and corrosion resistance. With a 3-1/16 inch size and 5000 PSI pressure rating, these valves provide reliable sealing and flow control under extreme conditions. Equipped with metal seats, RTJ or butt-weld ends, a robust 1-piece body, and an ISO 5211 mounting pad, they are ideal for critical oilfield and industrial operations requiring precision and long-term durability.
Valve Description:
181105046 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
