Key Specifications / Features
As a leading Compact Ball Valve Manufacturer in China, we produce high-performance valves designed to API 6A and API 6D standards for demanding industrial applications. Built with a robust ASTM A694 F60 body, these valves provide exceptional strength and pressure resistance up to 5000 PSI. The precision-engineered 17-4PH or Inconel trim ensures superior corrosion and wear resistance, while the soft-seated design delivers reliable sealing performance. With a compact 2-9/16 inch size and RTJ or BW end connections, our valves guarantee efficient flow control, leak-tight integrity, and long service life in oil, gas, and high-pressure process systems.
Valve Description:

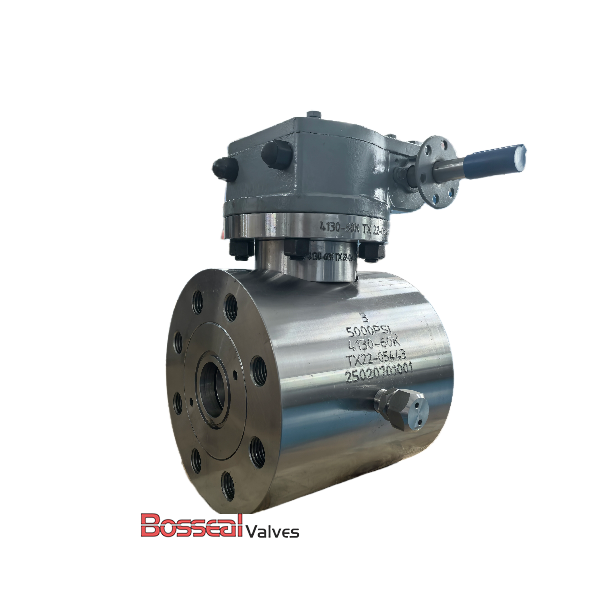

181105045 Compact Ball Valve
Design Standard: API 6A/API 6D
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
Structure: 1pc body
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
