Key Specifications / Features
As a leading forged ball valve supplier in China, we provide high-quality valves engineered to API 6A standards. Crafted from AISI 4130, F60, or F65 steel bodies, these valves are rated up to 3000 PSI and feature RTJ or butt-weld ends for secure connections. The durable AISI 4140, F51, or 17-4PH trims ensure reliable performance under demanding conditions. Available in lever, gear, or actuated configurations, they include an ISO 5211 mounting pad for versatile actuation options. Designed for critical flow control, these valves deliver exceptional durability, safety, and precision across industrial applications.
Valve Description:

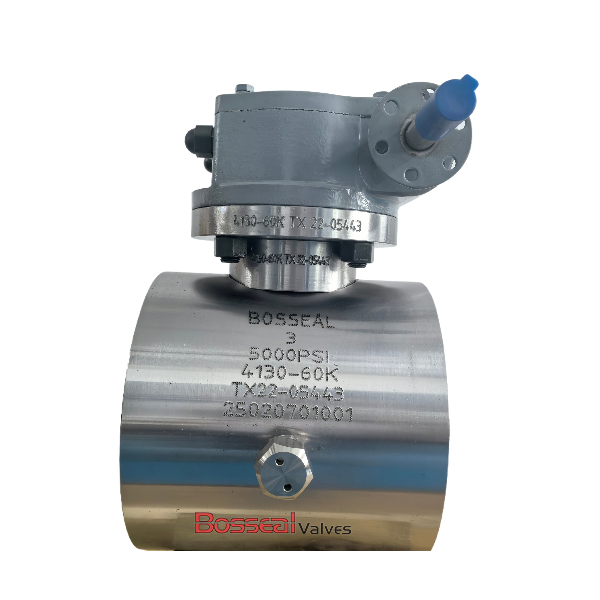

181105027 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
