Key Specifications / Features
As a leading compact ball valve factory in China, we manufacture high-performance valves engineered to API 6D and API 6A standards. Featuring robust AISI 4130, F60, or F65 bodies and F51, 17-4PH, or Inconel trims, these valves are built for demanding industrial applications. Available in 4-1/8 inch sizes and rated up to 3000 PSI, they ensure reliable and precise flow control. With RTJ or butt-weld ends and versatile lever, gear, or actuated operation, our compact ball valves provide durability, safety, and efficiency, making them ideal for critical systems in oil, gas, and chemical industries.
Valve Description:

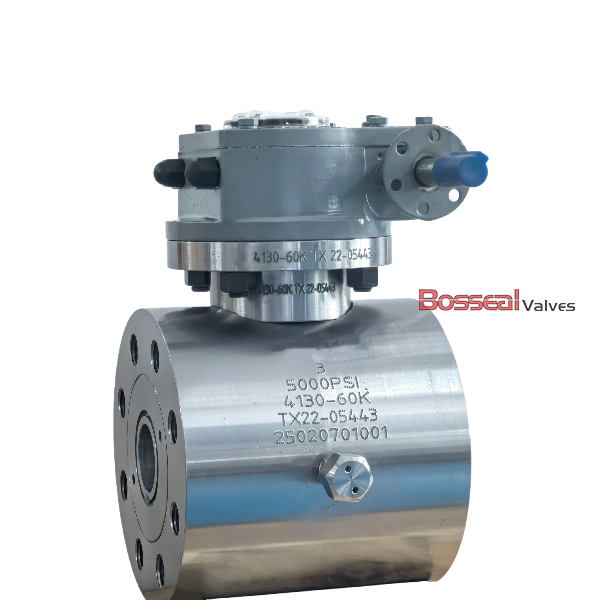

181105028 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
