Key Specifications / Features

Model No. : 2BS100JF65

Explore our API 6A Trunnion Mounted Ball Valve Factory with 2-inch size, 10,000 PSI rating, DN50, ASTM A694 F65 material, API 6D compliance, RTJ flanged design, HUB end connection, F6A Trim, PEEK seat, and lever operation. High-quality industrial valves for your needs.


Detail Information

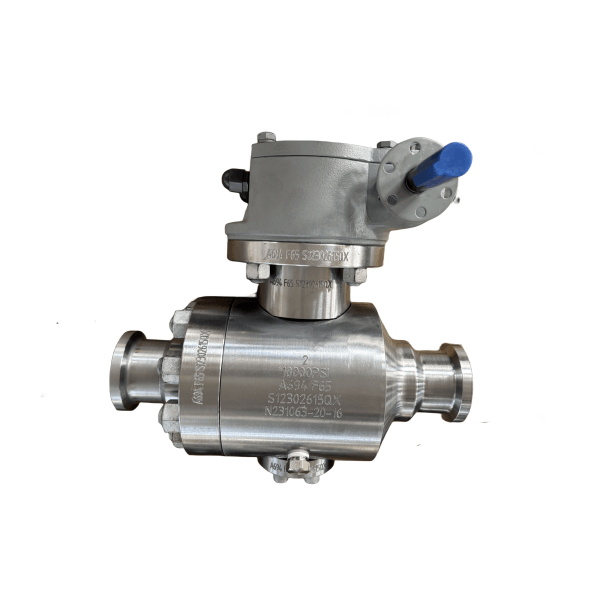

API 6A Trunnion Mounted Ball Valve, API 6D, API 6A, 2 inch, 10000 PSI, HUB End, A694 F65 Body, F6A Trim, PEEK Seat, Lever Operation

Valve Description:
1811047 Trunnion Mounted Ball Valve 2BS100JF65
Design Standard: API 6D, API 6A
Structure: Three pieces body, Side Entry, Bolted Bonnet
Nominal size: 2 Inch
Nominal class: 10000 PSI
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Lever
Body Material: ASTM A694 F65
Trim Material: AISI 4140, ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator



Name*
E-mail*
Rate*
Comments*

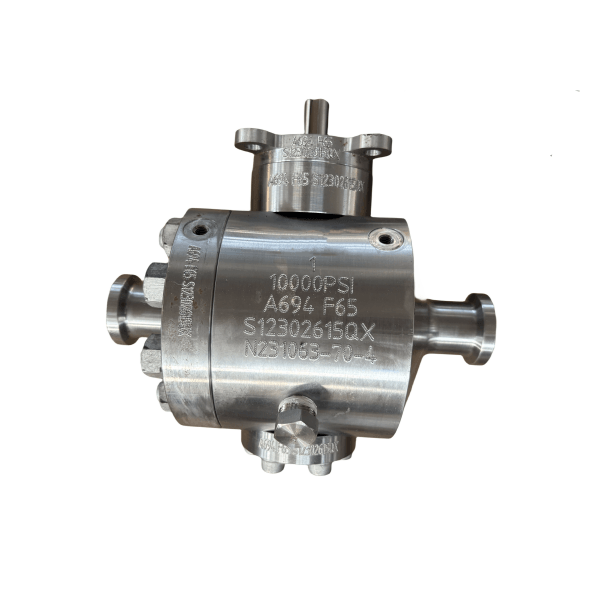

Next: ASTM A694 F65 Ball Valve, 1 Inch, 10000 PSI, API 6D, API 6A
