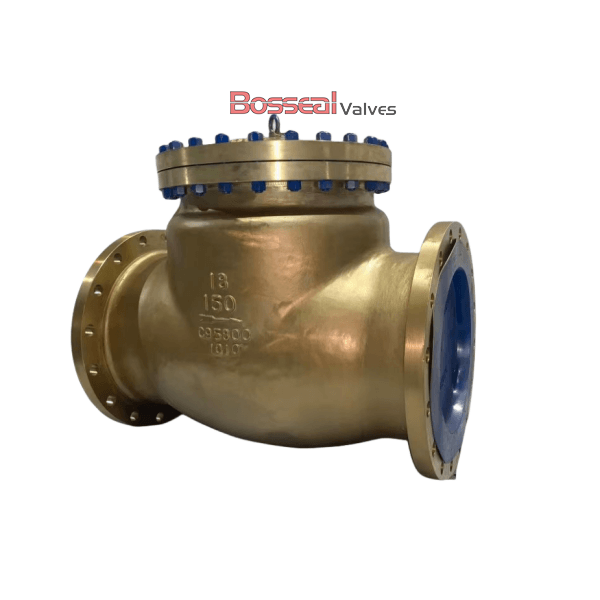

API 6D Swing Check Valve, BS 1868, Al-bronze, C95800, 26 IN

Name: API 6D Swing Check Valve, BS 1868, Al-bronze, C95800, 26 IN
SKU: ckv-187306035
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : CKV-187306035

We are a trusted swing check valve manufacturer in China, delivering high-quality valves built to API 6D and BS 1868 standards for reliable flow control and backflow prevention. Our swing check valves feature a robust bolted bonnet design and are made from premium aluminum bronze ASTM B148 C95800 material, offering excellent corrosion resistance and durability. Available in a large 26-inch size and rated for Class 300 LB, these valves come with flat face (FF) or raised face (RF) flanged ends to suit various pipeline configurations, ensuring secure connections and easy installation.

Request a quote

Tags:

API 6D Check Valve

BS 1868 Check Valve

Al-bronze Check Valve

Detail Information

Valve Description:
187306035 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 26 Inch
Nominal Class: 300 LB
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)
