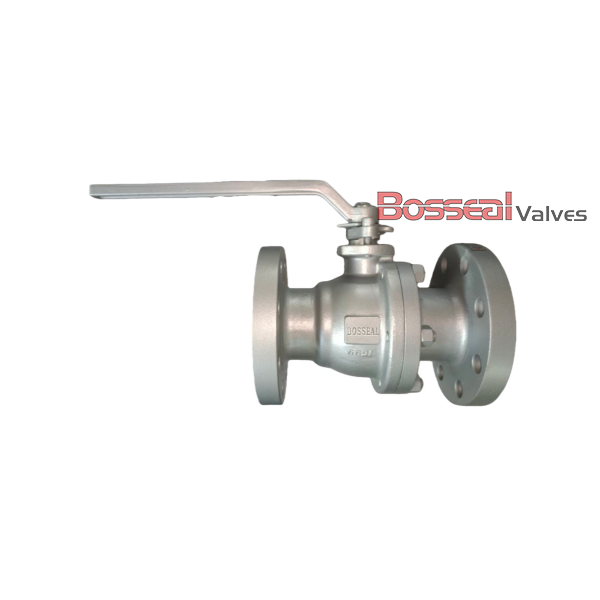

ASTM A105N Floating Ball Valves, ISO 17292, 1-1/2 IN, 300 LB

Key Specifications / Features

Model No. : 181203012

This forged floating ball valve is engineered to meet ISO 17292 and API 608 standards, ensuring dependable performance across a wide range of industrial applications. Designed with a side-entry, bolted bonnet structure, it features a robust carbon steel ASTM A105N body for enhanced strength and durability. The valve comes in a 1-1/2 inch size with a Class 300 LB pressure rating and smooth lever operation, offering precise flow control and reliable shutoff. Its compact, forged design provides excellent resistance to pressure and temperature fluctuations. As a leading forged floating ball valves manufacturer in China, we supply high-quality, long-lasting valves tailored to global industry needs.


Detail Information

Valve Description:
181203012 Floating Ball Valve
Design Standard: ISO 17292, API 608, API 6D
Structure: 2pcs body, Side Entry, Bolted Bonnet, Soft Seat
Sizes: 1-1/2 Inch, DN40, 40 mm
Pressure Rating: Class 300 LB, PN50
Bore Type: Full Bore or Reduced Bore
End Connection: RF, RTJ
Operation: Lever
Body Material: ASTM A105N or A350 LF2 or A182 F316, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A, C95800
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Anti-static, Fire Safe, Anti-Blowout Stem

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 Inch - 6 Inch (DN15 – DN150)
Pressure range: Class 150 LB - 300 LB
End connection: Flanged
Working temperature: -26°C - +210°C
Operation: Manual(lever), Pneumatic Actuator
