Key Specifications / Features
Introducing our ASME B16.34 Y Globe Valve, manufactured in China to the highest standards. Crafted from ASTM A182 F11 material, this valve meets API 602 and ASME B16.34 specifications, ensuring exceptional performance and durability. With a 1-inch size and DN25 designation, it is engineered to handle demanding applications with ease. The valve features a Class 2680 LB pressure rating and PN450, making it suitable for high-pressure environments. Its welded bonnet design provides robust sealing and leak resistance, while the National Pipe Thread (NPT) end ensures a reliable and secure connection. Designed for precision and reliability, this Y Globe Valve is ideal for applications requiring stringent flow control and resilience under high pressure. Its superior construction and high-quality materials guarantee long-lasting performance and dependable service in challenging conditions.

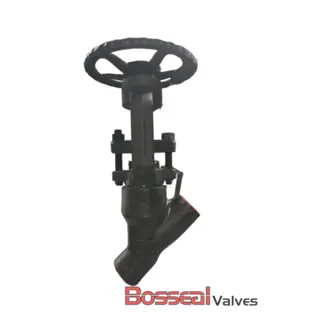

ASTM A182 F11 Y Globe Valve, 1 Inch/DN25, 2680 LB, Welded Bonnet, NPT End, Handwheel Operation.
| Valve Specification: | 1852057 Globe Valve |
| Design Standard: | ASME B16.34, API 602 |
| Structure: | Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet, Bonnetless |
| Bore Type: | Reduced Bore |
| Nominal Size: | 1 Inch, DN25 |
| Nominal Class: | CL 2680 LB, PN450 |
| Operation: | Handwheel |
| Body Material: | ASTM A182 F11, ASTM A182 F91, ASTM A182 F22, ASTM A105N, ASTM A182 F316 |
| Trim Material: | ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316 |
| Test and Inspection: | API 598 |
| Face to Face: | MFG'S |
| End Connection: | BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread) |
Key Features:
Rising Stem with Handwheel
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Product Portfolio:
Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
End Connection: BW/SW/NPT
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
