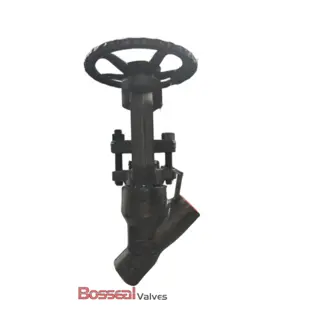

ASTM A182 F91 Y Globe Valve, 1 Inch, 1690 LB, ASME B16.34

Key Specifications / Features

Model No. : 1852047
Our ASME B16.34 Y Globe Valve, manufactured in China, is built to meet the highest industry standards including ASTM A182 F91 and API 602. This robust 1-inch valve, also available in DN25, is rated for Class 1690 LB pressure, ensuring it performs reliably under high-pressure conditions. The welded bonnet design provides superior strength and durability, making it suitable for demanding applications. Equipped with a National Pipe Thread (NPT) end, the valve offers secure and versatile installation options. A handwheel is included for easy manual operation and precise flow control. Engineered for excellence, this globe valve combines high-quality materials and craftsmanship to deliver exceptional performance in a variety of industrial settings.

Detail Information

ASTM A182 F91 Y Globe Valve, 1 Inch/DN25, 1690 LB, Welded Bonnet, NPT End, Handwheel Operation.

Valve Specification: 1852047 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet, Bonnetless
Nominal Size: 1 Inch, DN25
Nominal Class: CL 1690 LB, PN280
Bore Type: Reduced Bore
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F91, ASTM A182 F22, ASTM A182 F11, ASTM A105N, ASTM A182 F316
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)


Key Features:

1. Rising Stem with Handwheel
2. Y-Pattern Configuration
3. Live Load Packing for Enhanced Seal
4. Compact, Robust Design for High-Temperature and High-Pressure Environments
5. Options: Swivel, Plug, or Needle Disc
6. Outside Screw & Yoke (OS&Y)
7. Backseat for Additional Protection


Product Portfolio:

Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
End Connection: BW/SW/NPT
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
