Pressure Seal Globe Valve, 3/4 IN, CL1500, F11, ASME B16.34

Home/Products/Globe Valves/Pressure Seal Globe Valve, 3/4 IN, CL1500, F11, ASME B16.34

Key Specifications / Features

Model No. : 0.75GLP15BF1105

Explore our range of Pressure Seal Globe Valves fabricated to precision in 3/4 inch size, DN20, and engineered to Class 1500 LB and PN250 standards according to ASME B16.34 and API 602 specifications. Crafted with ASTM A182 F11 Body featuring F6A+STL.6 Trim 5, these valves ensure reliable performance. Operate effortlessly with the Handwheel design, ideal for seamless integration with BW systems.

Request a quote

Tags:

3/4 Inch Globe Valve

Class 1500 LB Globe Valve

ASTM A182 F11 Globe Valve

Detail Information

Pressure Seal Forged Globe Valve, ASME B16.34, 3/4 INCH, 1500 LB, BW, A182 F11 Body, Trim 5, Handwheel

Valve Description:
1852021 API 602 Forged Globe Valve 0.75GLP15BF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y
Nominal size: 3/4 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: Butt Weld
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL.6, Trim 5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel

Next: Class 1500 LB Globe Valve, 1 Inch, ASME B16.34, A182 F11, BW

Previous: ASTM A182 F11 Globe Valve, ASME B16.34, 1/2 IN, 1500 LB, BW

Similar Products

Forged Steel Y Globe Valve, ASTM A182 F11, 3/4 IN, 1500 LB

Forged Y Globe Valve, 3/4IN, A105N, 1500 LB, Trim 5, SW

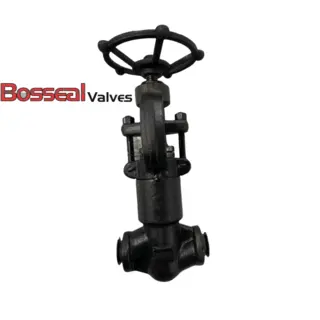

Butt Weld Globe Valve, 2 IN, 1500 LB, A182 F11, ASME B16.34
