Key Specifications / Features
Model No. : 16BSG3RF316

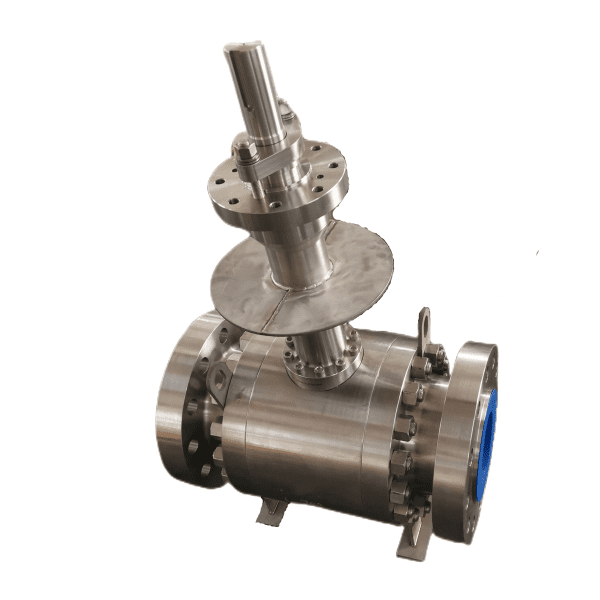

Discover our high-quality Cryogenic Trunnion Mounted Ball Valve designed to handle temperatures as low as -196℃. This valve complies with API 6D and BS 6364 standards, featuring a 16-inch size, 300 LB rating, and Flanged End connection. With its extended bonnet and robust construction using ASTM A182 f316 Body and Trim, it ensures exceptional performance. The PCTFE seat and Lip Seal guarantee reliable sealing, while the Gear Operation enhances ease of use. Ideal for demanding cryogenic applications.
Categories
Trunnion Mounted Ball Valve
Tags:
ASTM A182 F316 Ball Valve
, Cryogenic Ball Valve
, 16 Inch Ball Valve
.
Cryogenic Trunnion Mounted Ball Valve for -196℃, API 6D, BS 6364, 16 inch, 300 LB, Flanged End, extended bonnet, ASTM A182 f316 Body and Trim, PCTFE seat, Lip Seal, Gear Operation
Valve Description:
1811040 Trunnion Mounted Ball Valve 1811040
Design Standard: API 6D, BS 6364
Structure: Three pieces forged body, Side Entry, Extended Bonnet, Soft Seat
Nominal size: 16 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear Box
Body Material: ASTM A182 F316
Trim Material: F316, PCTFE Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cryogenic Service
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
