API 608 Floating Ball Valve, ASTM A216 WCB , 3 Inch, 300 LB

Key Specifications / Features
Model No. : 3B3RWCB

This DN80 floating ball valve is designed in accordance with API 608 standards and features an ISO 5211 mounting pad. The valve has a casting body, 300 LB pressure rating, and 3 inch size with raised face flanges. It is constructed with a WCB body and 316 trim material. The valve is operated by a lever and is suitable for a variety of applications.

Categories Floating Ball Valve

Tags: API 608 Ball Valve , Floating Ball Valve , ASTM A216 WCB Ball Valve .

Detail Information

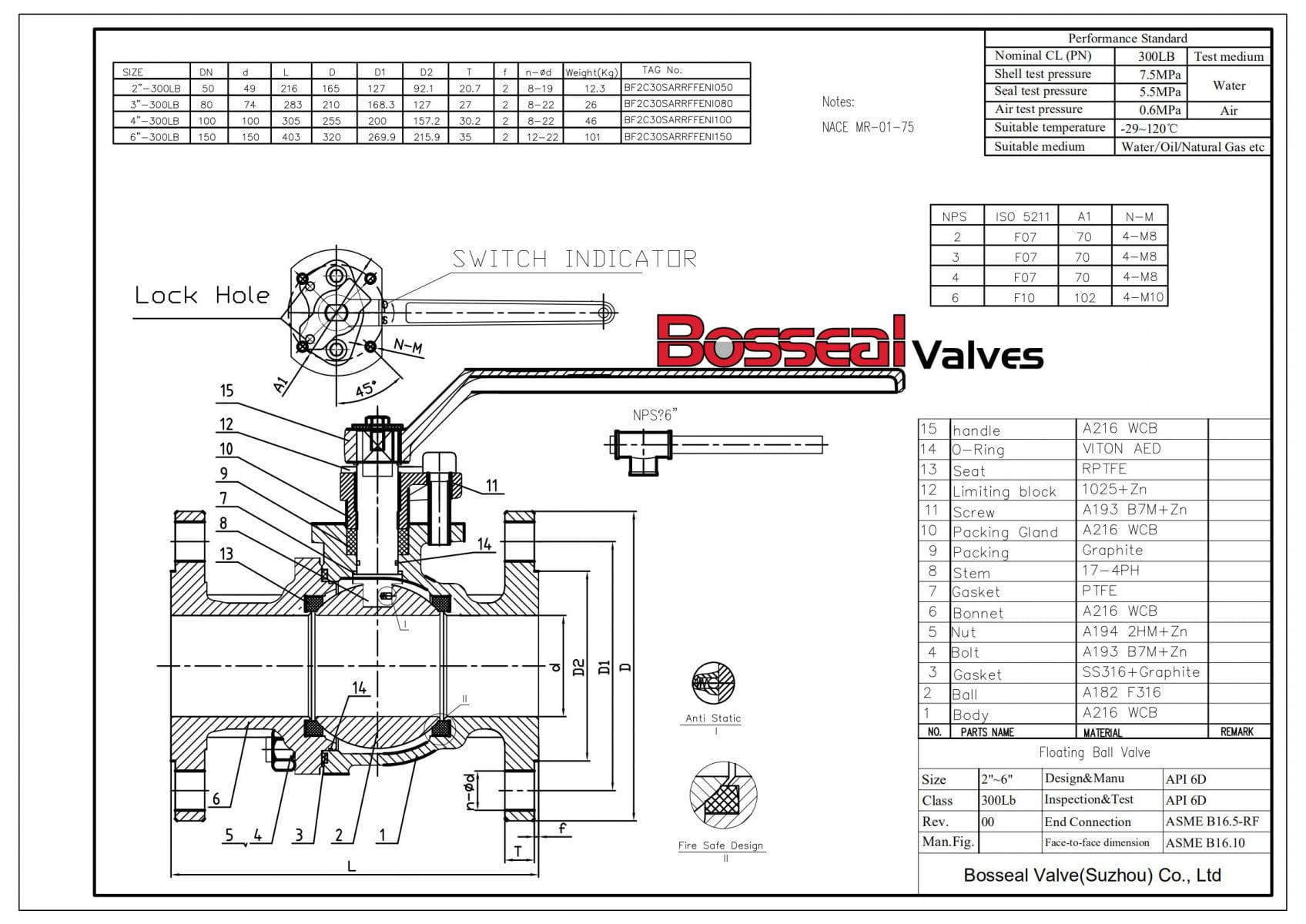

DN80 Floating Ball Valve, API 608, ISO 5211 Mounting Pad, Casting Body, 300 LB, 3 Inch, RF, WCB Body, 316 Trim, Lever Operation

Valve Description:
1812005 Floating Ball Valve 3B3RWCB
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 3 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device, ISO 5211 mounting pad

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator

DN80 Floating Ball Valve
